Product CatalogPart Number
SFH 3505FA
Manufacturer
ams-OSRAM USA INC.Description
SENSOR PHOTO 860NM SIDE VIEW RAD
Datasheet
DatasheetPackage
Radial
In Stock
32,889 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SFH 3505FA
SFH 3505FA
lmages are for reference only.Payment Methods
Delivery Services
Phototransistors 860nm Side View Radial
Quick Inquiry
SFH 3505FA
Specifications
| Category | Sensors, Transducers - Optical Sensors - Phototransistors |
| Manufacturer | ams-OSRAM USA INC. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| Voltage - Collector Emitter Breakdown (Max) | 35 V |
| Current - Collector (Ic) (Max) | 50 mA |
| Current - Dark (Id) (Max) | 200 nA |
| Wavelength | 860nm |
| Viewing Angle | 26° |
| Mounting Type | Surface Mount |
| Orientation | Side View |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | Radial |
| Base Product Number | - |
| Power - Max | 150 mW |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

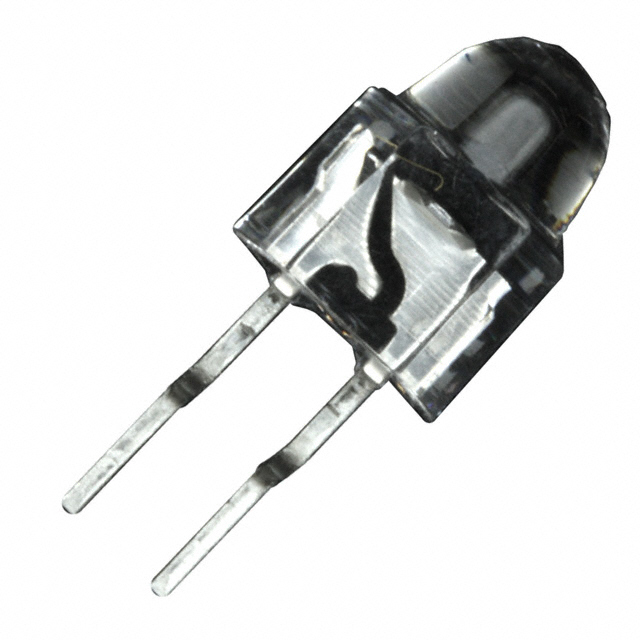

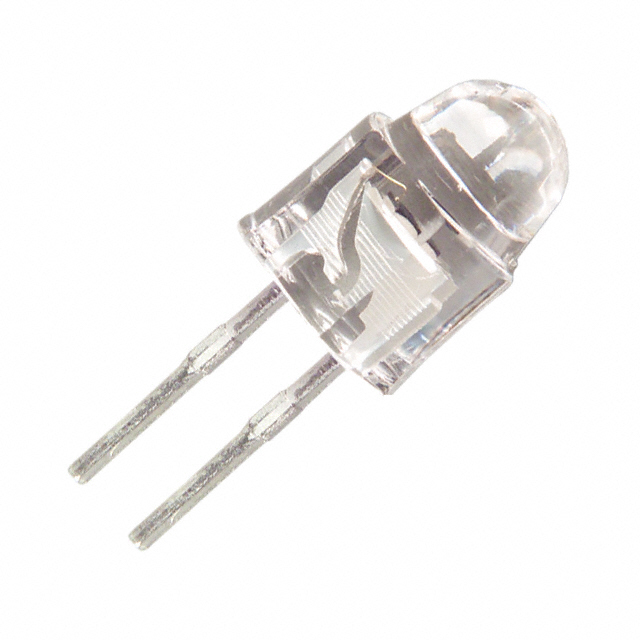

| Part Number | SFH 3500-Z | SFH 3505 | SFH 305-2/3 | SFH 3100F E9566 |
| Manufacturer | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PHOTOTRANSISTOR NPN SMD RADIAL | SENSOR PHOTO 830NM SIDE VIEW RAD | SENSOR PHOTO 850NM TOP VIEW RAD | SENSOR PHOTO 920NM SIDE VIEW RAD |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Bulk |
