Product CatalogPart Number
SFH 4503
Manufacturer
ams-OSRAM USA INC.Description
EMITTER IR 950NM 100MA T 1 3/4
Datasheet
DatasheetPackage
T 1 3/4
In Stock
83,848 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SFH 4503
SFH 4503
lmages are for reference only.Payment Methods
Delivery Services
Infrared (IR) Emitter 950nm 1.5V 100mA 63mW/sr @ 100mA 8° T 1 3/4
Quick Inquiry
SFH 4503
Specifications
| Category | Optoelectronics - LED Emitters Infrared-UV-Visible - |
| Manufacturer | ams-OSRAM USA INC. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | - |
| Type | Infrared (IR) |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 63mW/sr @ 100mA |
| Wavelength | 950nm |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 8° |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | T 1 3/4 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

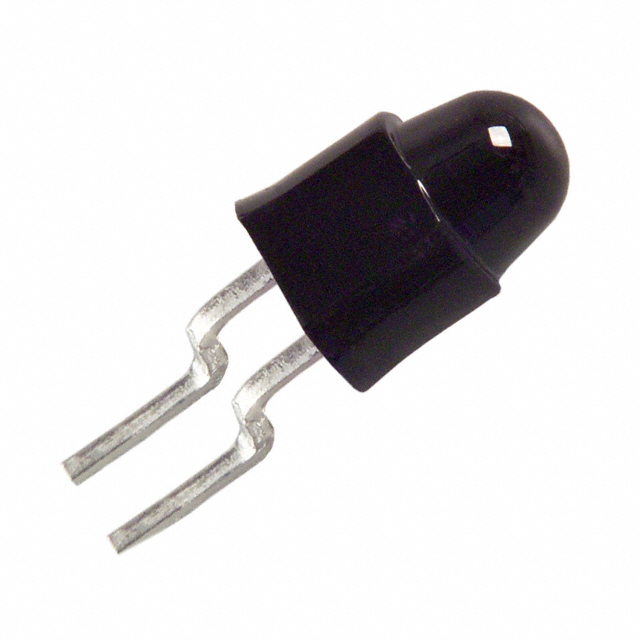

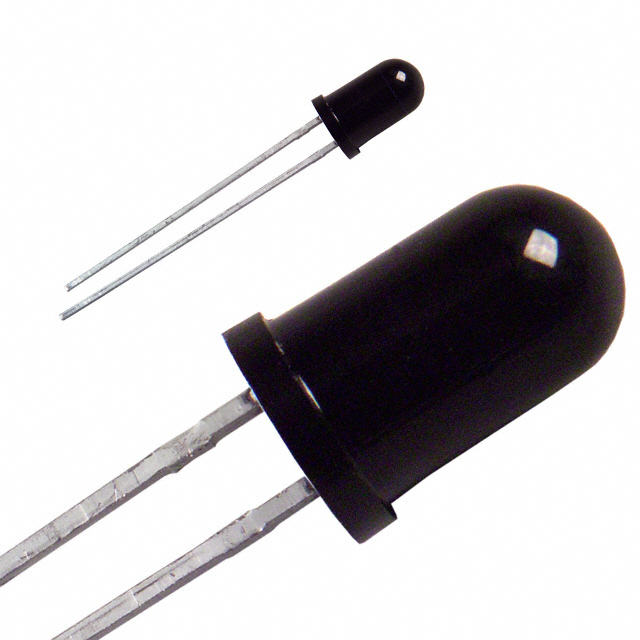

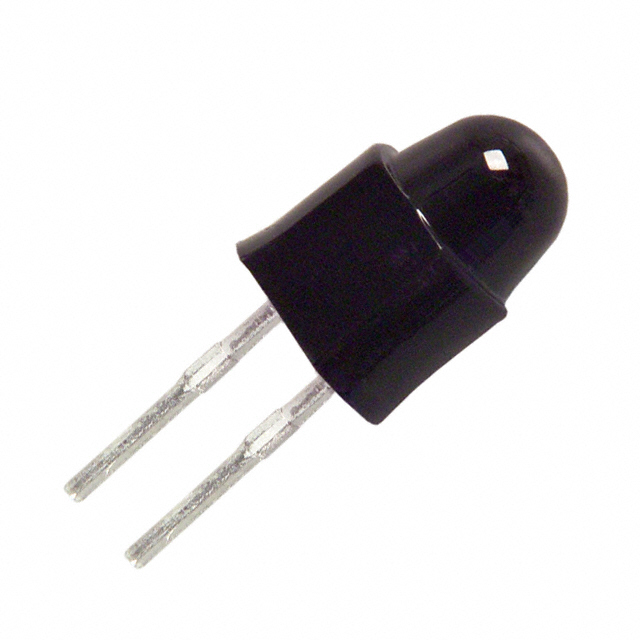

| Part Number | SFH 4500 | SFH 4501 | SFH 4502 | SFH 4505 |
| Manufacturer | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | EMITTER IR 950NM 100MA RADIAL | EMITTER IR 950NM 100MA T 1 3/4 | EMITTER IR 950NM 100MA T 1 3/4 | EMITTER IR 950NM 100MA SMR |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Bulk | Bulk | Tape & Reel (TR) |
