SFH6750-X007T
lmages are for reference only.SFH6750-X007T
OPTOISO 5.3KV 2CH OPEN DRN 8SMD
Datasheet8-SMD, Gull Wing
62,703 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Logic Output Optoisolator 10MBd Open Drain 5300Vrms 2 Channel 100V/µs CMTI 8-SMD
SFH6750-X007T
| Category | Isolators - Optoisolators - Logic Output Optoisolators |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 2 |
| Inputs - Side 1/Side 2 | 2/0 |
| Voltage - Isolation | 5300Vrms |
| Common Mode Transient Immunity (Min) | 100V/µs |
| Input Type | DC |
| Output Type | Open Drain |
| Current - Output / Channel | 50 mA |
| Data Rate | 10MBd |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Rise / Fall Time (Typ) | 23ns, 7ns |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Current - DC Forward (If) (Max) | 15mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | 8-SMD |
| Base Product Number | SFH6750 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | SFH6750-X007T | SFH6700 | SFH6700 | SFH6701 |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

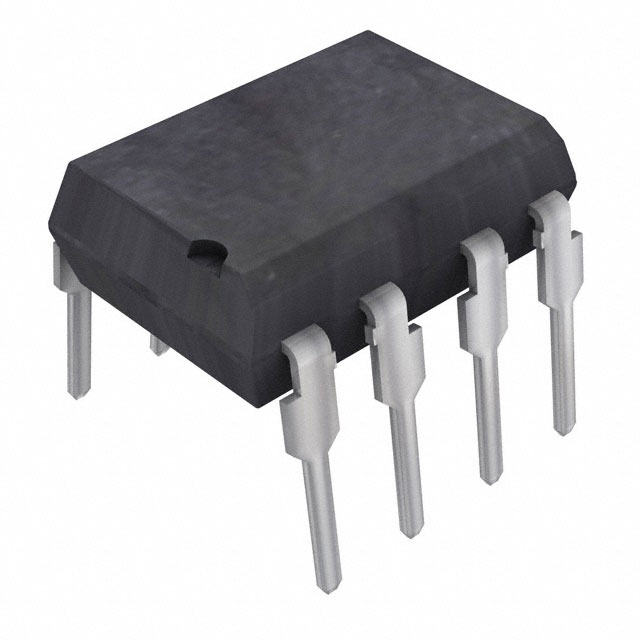

| Description | OPTOISO 5.3KV 2CH OPEN DRN 8SMD | OPTOISO 5.3KV TRI-STATE 8DIP | OPTOISO 5.3KV TRI-STATE 8DIP | OPTOISO 5.3KV PUSH PULL 8DIP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube | Tube |
