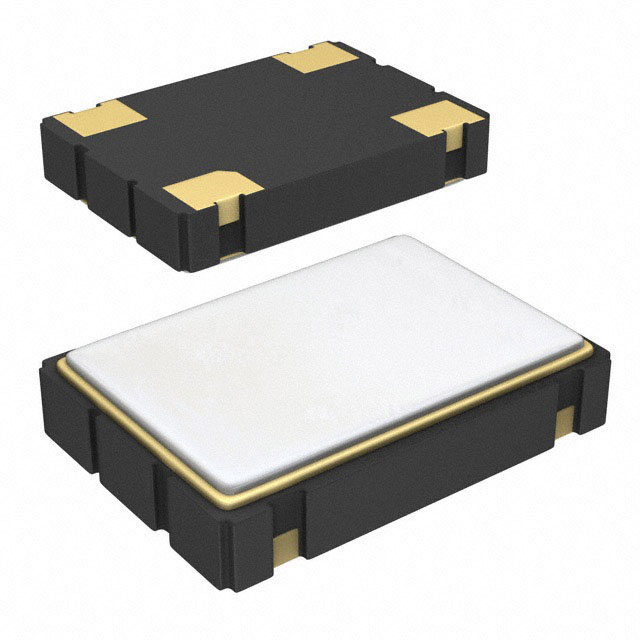

1 MHz XO (Standard) CMOS Oscillator 1.8V ~ 3.3V Enable/Disable 4-SMD, No Lead
SG-8101CA 1.0000M-TBGPA0
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | EPSON |
| Series | SG-8101 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 1 MHz |
| Function | Enable/Disable |
| Output | CMOS |
| Voltage - Supply | 1.8V ~ 3.3V |
| Frequency Stability | ±15ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 3mA (Typ) |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.055" (1.40mm) |
| Base Product Number | SG-8101 |
| Product Attribute |  |
 |
|
|
| Part Number | SG-8101CA 1.0000M-TBGSA0 | SG-8101CA 1.0000M-TCHPA0 | SG-8101CA 1.0000M-TCHSA0 | SG-8101CA 1.0025M-TBGPA0 |
| Manufacturer | EPSON | EPSON | EPSON | EPSON |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SG-8101CA 1.0000M-TBGSA0: OSC MH | SG-8101CA 1.0000M-TCHPA0: OSC MH | SG-8101CA 1.0000M-TCHSA0: OSC MH | SG-8101CA 1.0025M-TBGPA0: OSC MH |
| Series | EPSON | EPSON | EPSON | EPSON |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
