SG2004J
lmages are for reference only.SG2004J

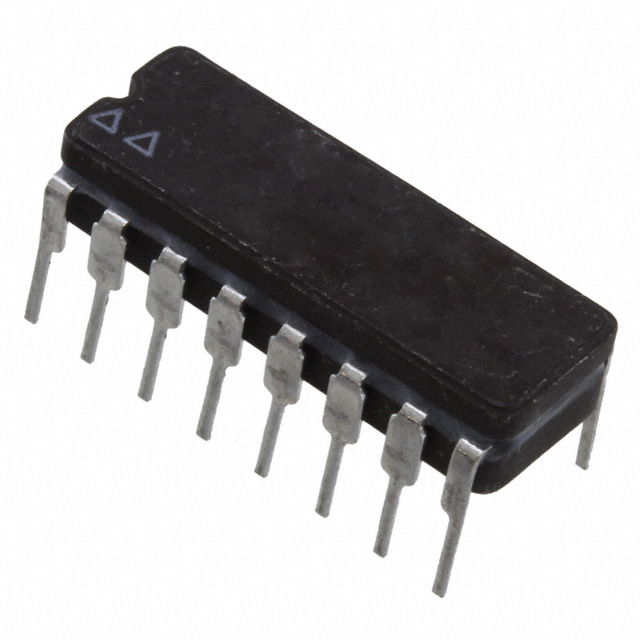

TRANS 7NPN DARL 50V 16CERDIP
Datasheet16-CDIP (0.300", 7.62mm)
38,152 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bipolar (BJT) Transistor Array 7 NPN Darlington 50V 500mA Through Hole 16-CERDIP
SG2004J
| Category | Discrete Semiconductor Products - Transistors - Bipolar BJT |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Transistor Type | 7 NPN Darlington |
| Current - Collector (Ic) (Max) | 500mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Vce Saturation (Max) @ Ib, Ic | 1.6V @ 500µA, 350mA |
| Current - Collector Cutoff (Max) | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 350mA, 2V |
| Power - Max | - |
| Frequency - Transition | - |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CERDIP |
| Base Product Number | SG2004 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SG2004J-883B | SG2004J-JAN | SG2003J | SG2003J-883B |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TRANS 7NPN DARL 50V 16CERDIP | TRANS 7NPN DARL 50V 16CERDIP | TRANS 7NPN DARL 50V 500MA 16CDIP | TRANS 7NPN DARL 50V 500MA 16CDIP |
| Series | - | - | - | - |
| Packaging | Tray | Tray | Tube | Tube |
