SG2803J
lmages are for reference only.SG2803J
TRANS 8NPN DARL 50V 18CERDIP
Datasheet18-CDIP (0.300", 7.62mm)
66,038 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bipolar (BJT) Transistor Array 8 NPN Darlington 50V 500mA Through Hole 18-CERDIP

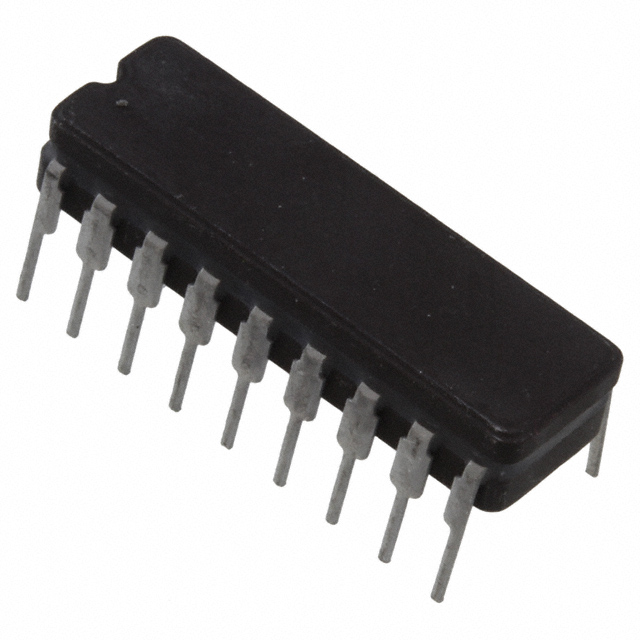

SG2803J
| Category | Discrete Semiconductor Products - Transistors - Bipolar BJT |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Transistor Type | 8 NPN Darlington |
| Current - Collector (Ic) (Max) | 500mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Vce Saturation (Max) @ Ib, Ic | 1.6V @ 500µA, 350mA |
| Current - Collector Cutoff (Max) | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - |
| Power - Max | - |
| Frequency - Transition | - |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 18-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 18-CERDIP |
| Base Product Number | SG2803 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
|

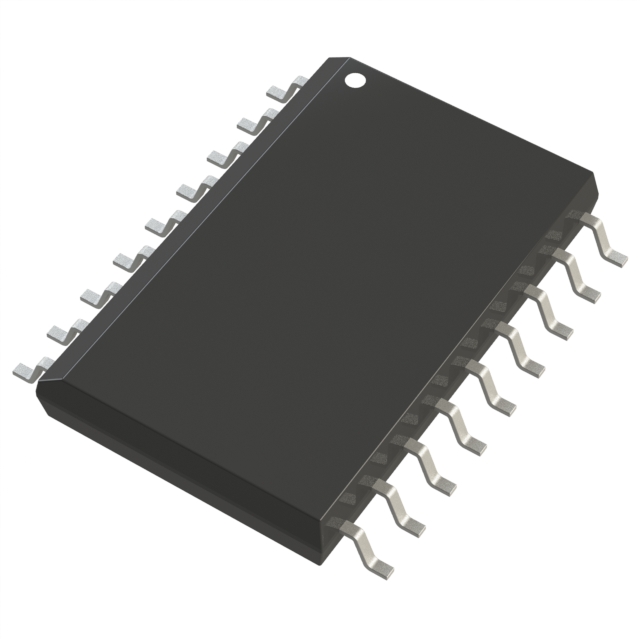

| Part Number | SG2803DW | SG2803J-883B | SG2803J-DESC | SG2803J-JAN |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TRANS 8NPN DARL 50V 500MA 18SOIC | TRANS 8NPN DARL 50V 500MA 18CDIP | TRANS 8NPN DARL 50V 500MA 18CDIP | TRANS 8NPN DARL 50V 18CERDIP |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tray |
