SG73P1ETTP4752F

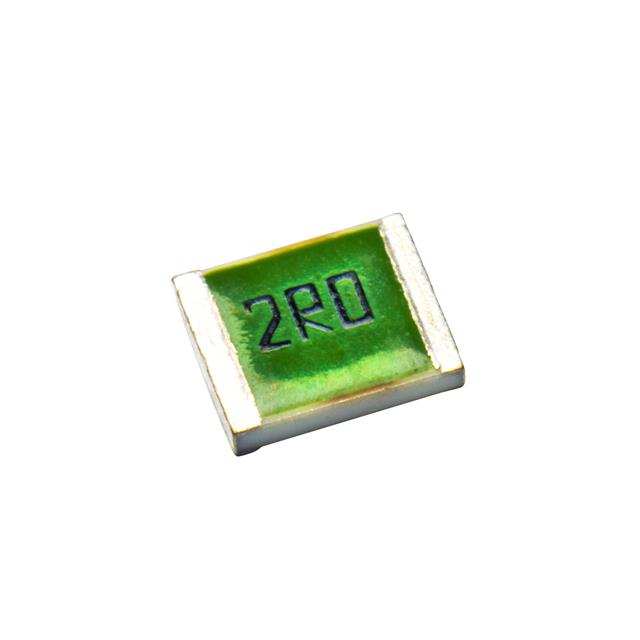

lmages are for reference only.SG73P1ETTP4752F
RES 47.5K OHM 1% 1/5W 0402
Datasheet0402 (1005 Metric)
69,420 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
47.5 kOhms ±1% 0.2W, 1/5W Chip Resistor 0402 (1005 Metric) Automotive AEC-Q200, Pulse Withstanding Thick Film
SG73P1ETTP4752F
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | KOA Speer Electronics, Inc. |
| Series | SG73P |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 47.5 kOhms |
| Tolerance | ±1% |
| Power (Watts) | 0.2W, 1/5W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Pulse Withstanding |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.016" (0.40mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | SG73P1E |
| Product Attribute |  |
 |
 |
 |

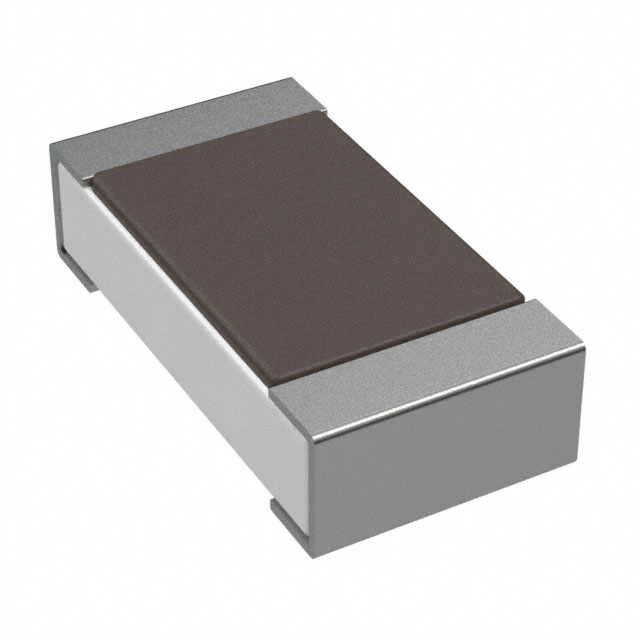

| Part Number | SG73P1ETTP4752D | SG73P1ETTP4700D | SG73P1ETTP4700F | SG73P1ETTP4701D |
| Manufacturer | KOA Speer Electronics, Inc. | KOA Speer Electronics, Inc. | KOA Speer Electronics, Inc. | KOA Speer Electronics, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 47.5K OHM 0.5% 1/5W 0402 | RES 470 OHM 0.5% 1/5W 0402 | RES 470 OHM 1% 1/5W 0402 | RES 4.7K OHM 0.5% 1/5W 0402 |
| Series | KOA Speer Electronics, Inc. | KOA Speer Electronics, Inc. | KOA Speer Electronics, Inc. | KOA Speer Electronics, Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
