SGD-120-3
lmages are for reference only.SGD-120-3
SENSOR LINEAR 3048MM CONNECTOR
DatasheetBox with Connector
75,137 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Resistive Sensor Linear Position String Potentiometer Connector
SGD-120-3
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | TE Connectivity Measurement Specialties |
| Series | SGD |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| For Measuring | Linear Position |
| Technology | Resistive |
| Rotation Angle - Electrical, Mechanical | - |
| Linear Range | 0 ~ 3048mm (0 ~ 120") |
| Output | Analog Voltage, 4 ~ 20mA |
| Output Signal | - |
| Actuator Type | String Potentiometer |
| Linearity | - |
| Resistance | 10 kOhms |
| Resistance Tolerance | ±10% |
| Voltage - Supply | 8V ~ 40V |
| Mounting Type | Custom |
| Termination Style | Connector |
| Operating Temperature | -18°C ~ 70°C |
| Package / Case | Box with Connector |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Base Product Number | SGD |
| Product Attribute |  |
 |
 |
 |

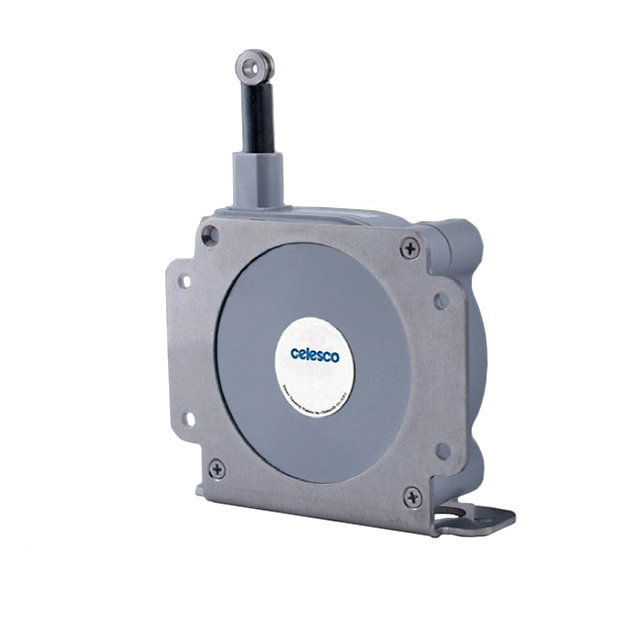

| Part Number | SGD-80-3 | MLX90513GGO-CAA-100-SP | HP-L-1000-203-3%-RLD | 6126V3A75L.5CW |
| Manufacturer | TE Connectivity Measurement Specialties | Melexis Technologies NV | Spectra Symbol | TT Electronics/BI |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | SENSOR LINEAR 2032MM CONNECTOR | INDUCTIVE POSITION SENSOR ASSP W | SENSOR LINEAR 1000MM CONNECTOR | NON-CONTACTING ROTARY SENSOR |
| Series | SGD | - | HotPot | * |
| Packaging | Box | Bulk | Box | Bulk |
