SH31N220K102CT

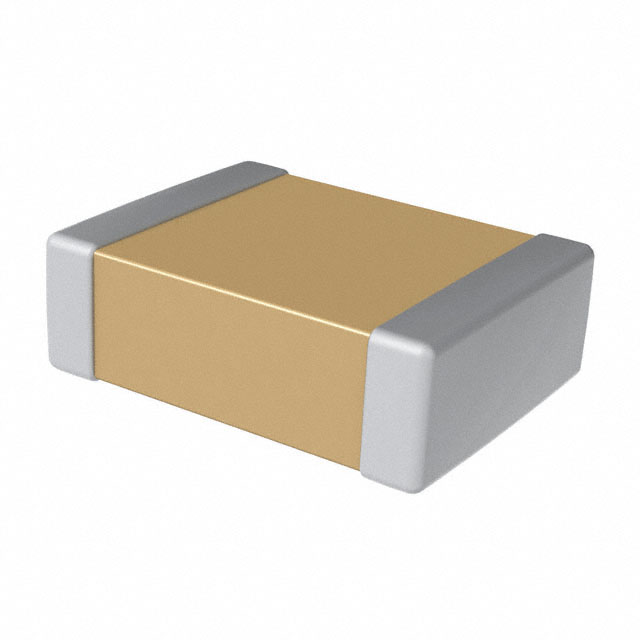

lmages are for reference only.SH31N220K102CT
CAP CER 22PF 1KV C0G/NP0 1206
Datasheet1206 (3216 Metric)
73,296 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
22 pF ±10% 1000V (1kV) Ceramic Capacitor C0G, NP0 1206 (3216 Metric)
SH31N220K102CT
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Walsin Technology Corporation |
| Series | SH |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 22 pF |
| Tolerance | ±10% |
| Voltage - Rated | 1000V (1kV) |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Voltage, Soft Termination |
| Ratings | - |
| Applications | Boardflex Sensitive |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.035" (0.90mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SH31N220J102CT | SH31N220J202CT | SH31N220J501CT | SH31B101K102CT |
| Manufacturer | Walsin Technology Corporation | Walsin Technology Corporation | Walsin Technology Corporation | Walsin Technology Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 22PF 1KV C0G/NP0 1206 | CAP CER 22PF 2KV C0G/NP0 1206 | CAP CER 22PF 500V C0G/NP0 1206 | CAP CER 100PF 1KV X7R 1206 |
| Series | Walsin Technology Corporation | Walsin Technology Corporation | Walsin Technology Corporation | Walsin Technology Corporation |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
