SH50T-0.85-680

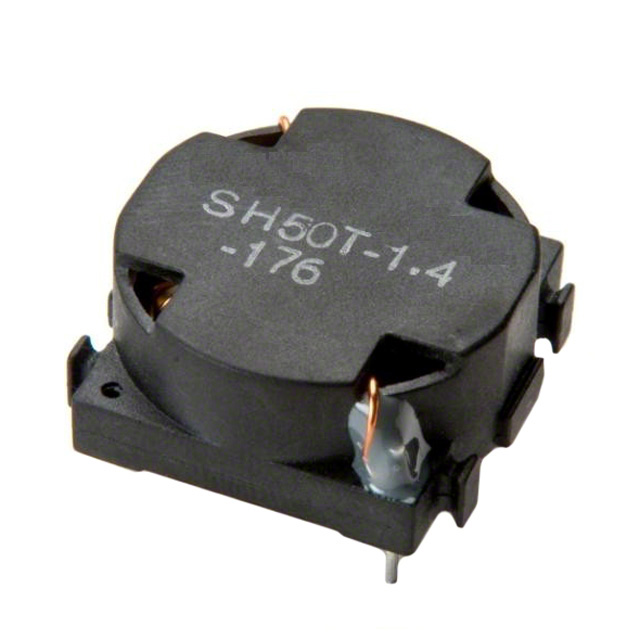

lmages are for reference only.SH50T-0.85-680
FIXED IND 680UH 850MA 1.25OHM TH
DatasheetRadial, Horizontal - Corner Terminals
33,640 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
680 µH Unshielded Toroidal Inductor 850 mA 1.25Ohm Max Radial, Horizontal - Corner Terminals
SH50T-0.85-680
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Amgis, LLC |
| Series | SH50 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 680 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 850 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.25Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal - Corner Terminals |
| Supplier Device Package | - |
| Size / Dimension | 0.689" L x 0.669" W (17.50mm x 17.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
 |
| Part Number | SH50T-0.85-680 | SH50T-0.85-680 | SH50T-0.9-267 | SH50T-0.9-330 |
| Manufacturer | Amgis, LLC | Amgis, LLC | Amgis, LLC | Amgis, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 680UH 850MA 1.25OHM TH | FIXED IND 680UH 850MA 1.25OHM TH | FIXED IND 267UH 900MA 180MOHM TH | FIXED IND 330UH 900MA 740MOHM TH |
| Series | Amgis, LLC | Amgis, LLC | Amgis, LLC | Amgis, LLC |
| Packaging | Tray | Tray | Tray | Tray |
