Product CatalogPart Number
SI3134K-TP
Manufacturer
Micro Commercial CoDescription
MOSFET N-CH 20V 750MA SOT723
Datasheet
DatasheetPackage
SOT-723
In Stock
74,697 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SI3134K-TP
SI3134K-TP
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 20 V 750mA (Tj) 150mW (Ta) Surface Mount SOT-723
Quick Inquiry
SI3134K-TP
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Micro Commercial Co |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 750mA (Tj) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V |
| Rds On (Max) @ Id, Vgs | 800mOhm @ 450mA, 1.8V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 120 pF @ 16 V |
| FET Feature | - |
| Power Dissipation (Max) | 150mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-723 |
| Package / Case | SOT-723 |
| Base Product Number | SI3134 |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
 |
|
|
| Part Number | SI3134KA-TP | SI3134KE-TP | SI3134KEA-13P | SI3134KEA-TP |
| Manufacturer | Micro Commercial Co | Micro Commercial Co | Micro Commercial Co | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 20V 750MA SOT723 | MOSFET N-CH 20V 750MA SOT523 | SMALL SIGNAL MOSFET | N-CHANNEL MOSFET |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
SI3134KA-TP
Micro Commercial Co
SI3134KE-TP
Micro Commercial Co
SI3134KEA-13P
Micro Commercial Co
SI3134KEA-TP
Micro Commercial Co

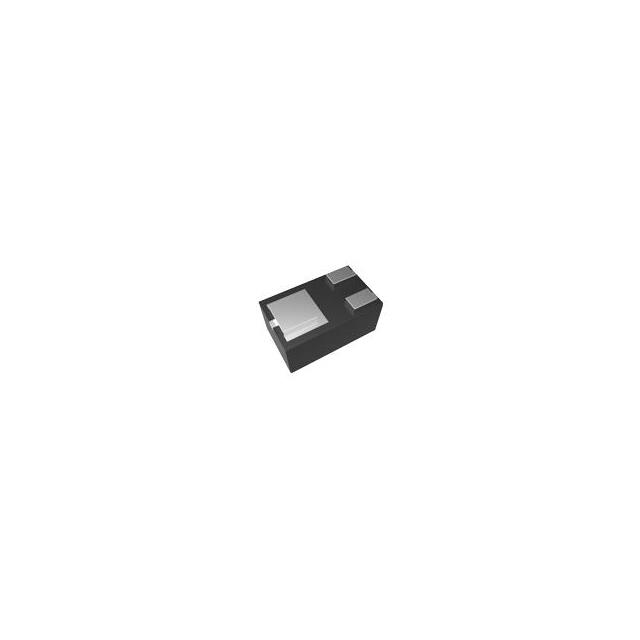

SI3134KL-TP
Micro Commercial Co
SI3134KL3-TP
Micro Commercial Co

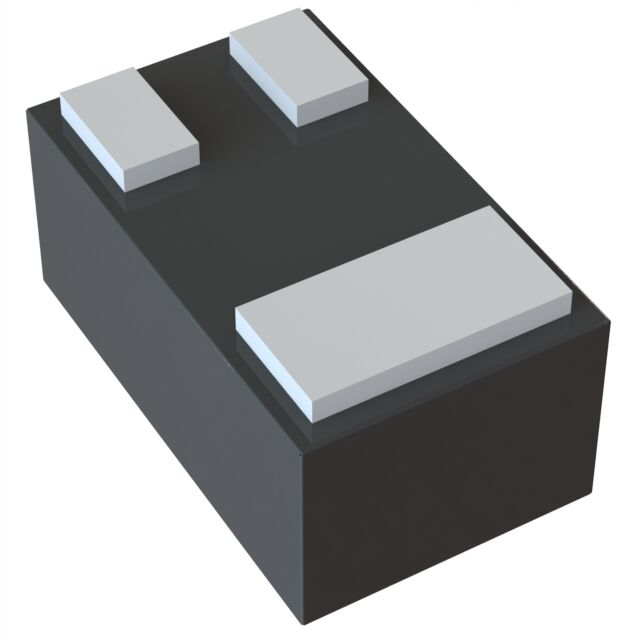

SI3134KL3A-TP
Micro Commercial Co
SI3134KL3B-TP
Micro Commercial Co
SI3134KLA-TP
Micro Commercial Co
SI3134KS-TP
Micro Commercial Co
SI3134KW-TP
Micro Commercial Co
SI3134KWA-TP
Micro Commercial Co
SI3136K-TP
Micro Commercial Co
SI3139K-TP
Micro Commercial Co

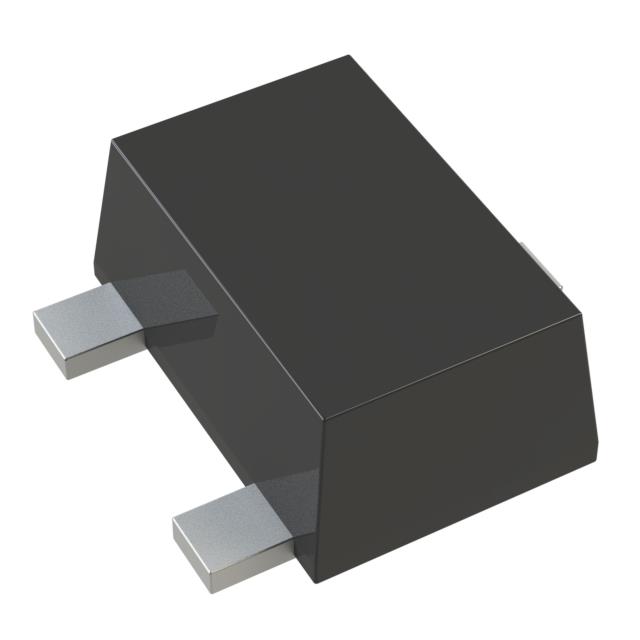

SI3139KA-TP
