SI7615BDN-T1-GE3

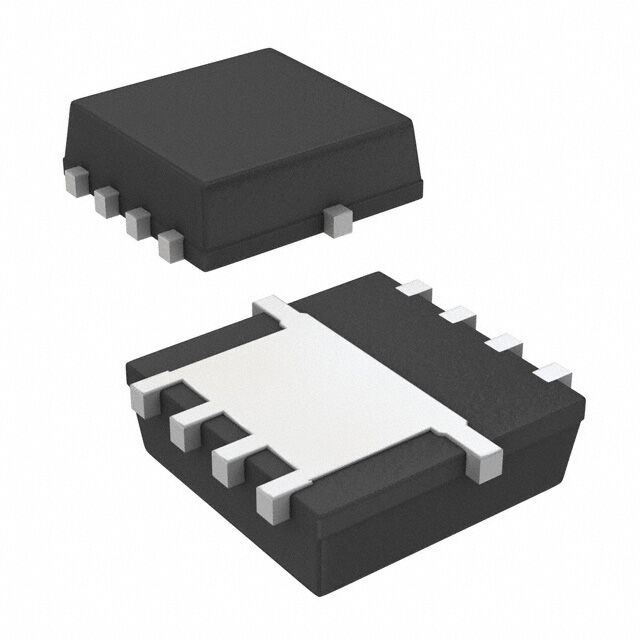

lmages are for reference only.SI7615BDN-T1-GE3
MOSFET P-CH 20V 29A/104A PPAK
DatasheetPowerPAK® 1212-8
42,023 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
P-Channel 20 V 29A (Ta), 104A (Tc) 5.2W (Ta), 66W (Tc) Surface Mount PowerPAK® 1212-8
SI7615BDN-T1-GE3
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Vishay Siliconix |
| Series | - |
| Packaging | Digi-Reel® |
| RoHS Status | |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 29A (Ta), 104A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | 3.8mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 4890 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 5.2W (Ta), 66W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® 1212-8 |
| Package / Case | PowerPAK® 1212-8 |
| Base Product Number | SI7615 |
| Gate Charge (Qg) (Max) @ Vgs | 155 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | SI7615ADN-T1-GE3 | SI7615CDN-T1-GE3 | SI7615DN-T1-GE3 | SFP9Z34 |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET P-CH 20V 35A PPAK1212-8 | MOSFET P-CH 20V 35A PPAK1212-8 | MOSFET P-CH 20V 35A PPAK1212-8 | MOSFET P-CH 60V 18A TO220-3 |
| Series | TrenchFET® | TrenchFET® Gen III | TrenchFET® | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
