SI8401DB-T1-E3
lmages are for reference only.SI8401DB-T1-E3
MOSFET P-CH 20V 3.6A 4MICROFOOT
Datasheet4-XFBGA, CSPBGA
23,365 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
P-Channel 20 V 3.6A (Ta) 1.47W (Ta) Surface Mount 4-Microfoot
SI8401DB-T1-E3
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Vishay Siliconix |
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 3.6A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 65mOhm @ 1A, 4.5V |
| Vgs(th) (Max) @ Id | 1.4V @ 250µA |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | - |
| FET Feature | - |
| Power Dissipation (Max) | 1.47W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 4-Microfoot |
| Package / Case | 4-XFBGA, CSPBGA |
| Base Product Number | SI8401 |
| Gate Charge (Qg) (Max) @ Vgs | 17 nC @ 4.5 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
|
| Part Number | SI8401DB-T1-E1 | SI8402DB-T1-E1 | SI8404DB-T1-E1 | SI8405DB-T1-E1 |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

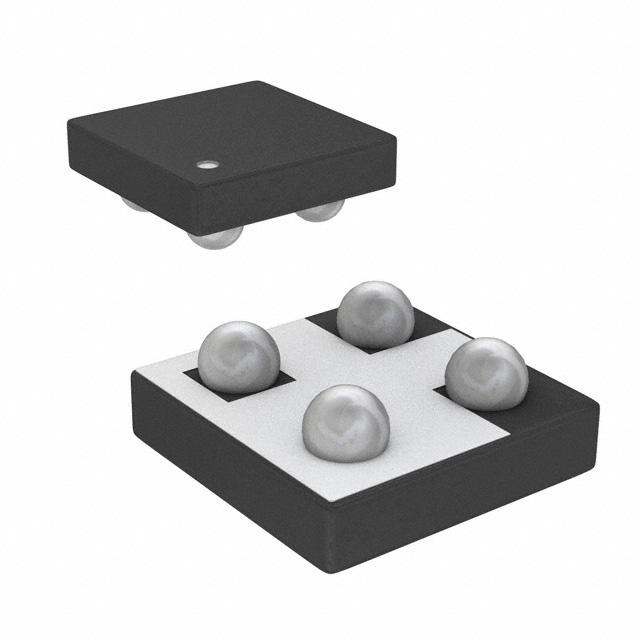

| Description | MOSFET P-CH 20V 3.6A 4MICROFOOT | MOSFET N-CH 20V 5.3A 2X2 4-MFP | MOSFET N-CH 8V 12.2A 4MICROFOOT | MOSFET P-CH 12V 3.6A 4MICROFOOT |
| Series | TrenchFET® | - | TrenchFET® | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
