SI8650BB-B-IS1R
lmages are for reference only.SI8650BB-B-IS1R
DGTL ISO 2500VRMS 5CH GP 16SOIC
Datasheet16-SOIC (0.154", 3.90mm Width)
16,105 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Digital Isolator 2500Vrms 5 Channel 150Mbps 35kV/µs CMTI 16-SOIC (0.154", 3.90mm Width)
SI8650BB-B-IS1R
| Category | Isolators - Digital Isolators - |
| Manufacturer | Skyworks Solutions Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Technology | Capacitive Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 5 |
| Inputs - Side 1/Side 2 | 5/0 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 35kV/µs |
| Data Rate | 150Mbps |
| Propagation Delay tpLH / tpHL (Max) | 13ns, 13ns |
| Pulse Width Distortion (Max) | 4.5ns |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns |
| Voltage - Supply | 2.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | SI8650 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

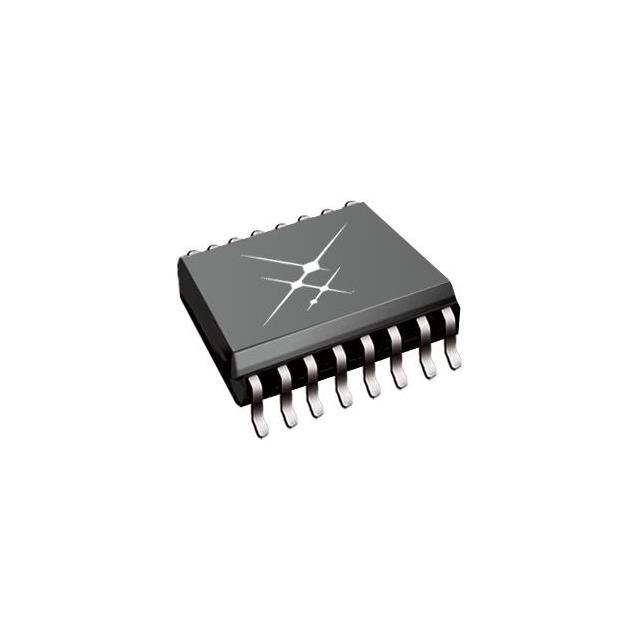

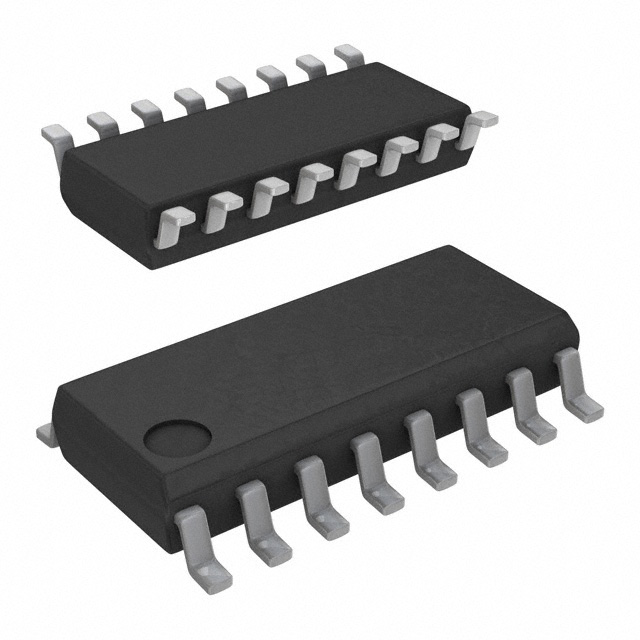

| Part Number | SI8650BB-B-IS1 | SI8650BB-B-IU | SI8650BB-B-IUR | SI8650BB-AS1 |
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | DGTL ISO 2500VRMS 5CH GP 16SOIC | DGTL ISO 2500VRMS 5CH GP 16QSOP | DGTL ISO 2500VRMS 5CH GP 16QSOP | AUTOMOTIVE 2.5 KV 5 FORWARD CHAN |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tube |
