SI86S620BE-AS4

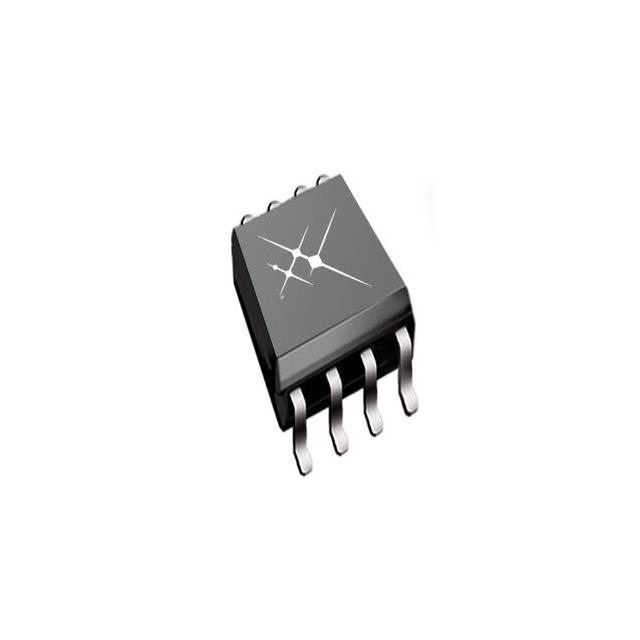

lmages are for reference only.SI86S620BE-AS4
6.0 KVRMS ISOLATOR, 2 UNIDIRECTI
Datasheet8-SOIC (0.295", 7.50mm Width)
58,501 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Digital Isolator 6000Vrms 2 Channel 150Mbps 100kV/µs CMTI 8-SOIC (0.295", 7.50mm Width)
SI86S620BE-AS4
| Category | Isolators - Digital Isolators - |
| Manufacturer | Skyworks Solutions Inc. |
| Series | Si86S62x |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Technology | Capacitive Coupling |
| Type | General Purpose |
| Isolated Power | Yes |
| Number of Channels | 2 |
| Inputs - Side 1/Side 2 | 2/0 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 6000Vrms |
| Common Mode Transient Immunity (Min) | 100kV/µs |
| Data Rate | 150Mbps |
| Propagation Delay tpLH / tpHL (Max) | 13.5ns, 13.5ns |
| Pulse Width Distortion (Max) | 2.5ns |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns |
| Voltage - Supply | 2.25V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 8-SSO |
| Base Product Number | SI86S620 |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Product Attribute |  |
 |
 |
 |
| Part Number | SI86S620BE-AS4R | SI86S620BE-IS4 | SI86S620BE-IS4R | SI86S620BC-AS |
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | 6.0 KVRMS ISOLATOR, 2 UNIDIRECTI | 6.0 KVRMS ISOLATOR, 2 UNIDIRECTI | 6.0 KVRMS ISOLATOR, 2 UNIDIRECTI | 3.75 KVRMS ISOLATOR, 2 UNIDIRECT |
| Series | Si86S62x | Si86S62x | Si86S62x | Si86S62x |
| Packaging | Tape & Reel (TR) | Tube | Tape & Reel (TR) | Tube |
