Product CatalogPart Number
SIC05120B-BP
Manufacturer
Micro Commercial CoDescription
DIODE SIL CARB 1.2KV 5A TO220AC
Datasheet
DatasheetPackage
TO-220-2
In Stock
90,683 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SIC05120B-BP
SIC05120B-BP
lmages are for reference only.Payment Methods
Delivery Services
Diode 1200 V 5A Through Hole TO-220AC
Quick Inquiry
SIC05120B-BP
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Micro Commercial Co |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Current - Average Rectified (Io) | 5A |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 5 A |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 3 µA @ 1200 V |
| Capacitance @ Vr, F | 353pF @ 0V, 1MHz |
| Mounting Type | Through Hole |
| Package / Case | TO-220-2 |
| Supplier Device Package | TO-220AC |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Base Product Number | SIC05120 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
|

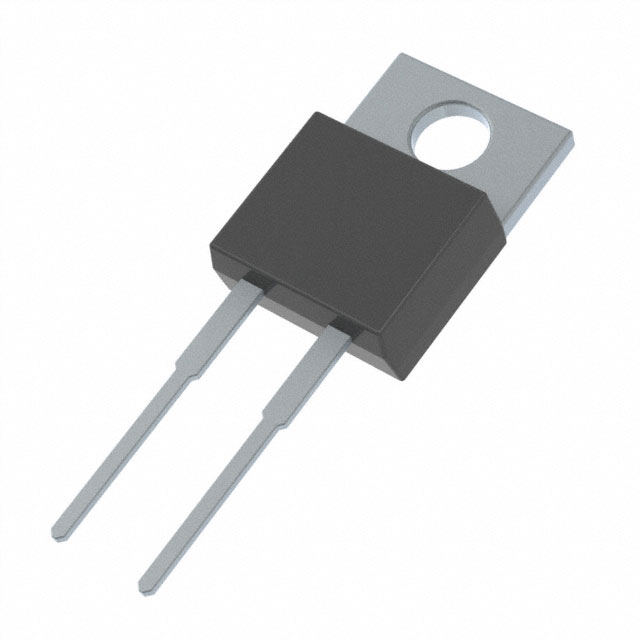

| Part Number | SIC05120H-BP | SIC20120B-BP | SICPT20120Y-BP | SICR10650 |
| Manufacturer | Micro Commercial Co | Micro Commercial Co | Micro Commercial Co | SMC Diode Solutions |
| RoHS Status | ROHS3 Compliant | |||
| Description | SIC SCHOTTKY BARRIER DIODES (SBD | Interface | Interface | DIODE SIL CARB 650V 10A TO220AC |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Tube |
