SID1181KQ
lmages are for reference only.SID1181KQ

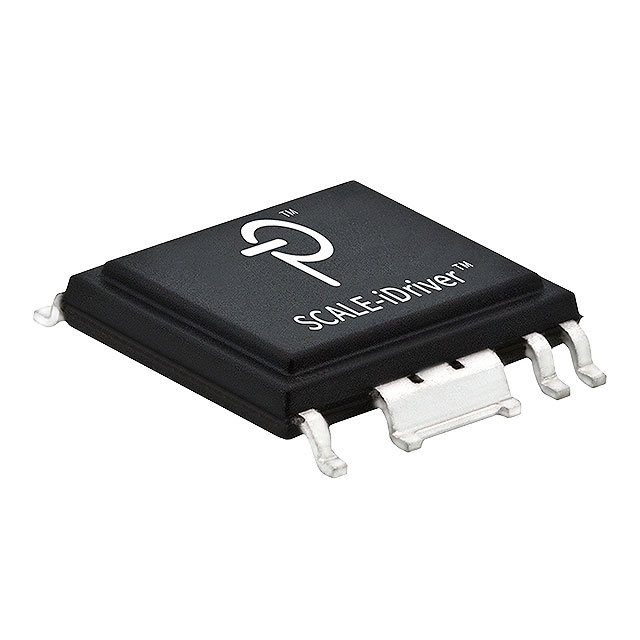

DGT ISO 5KV 1CH GT DVR ESOP-R16B
Datasheet16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
32,464 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
8A Gate Driver Capacitive Coupling 5000Vrms 1 Channel eSOP-R16B
SID1181KQ
| Category | Isolators - Isolators Gate Drivers - |
| Manufacturer | Power Integrations |
| Series | SCALE-iDriver™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Technology | Capacitive Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 50kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 340ns, 330ns |
| Pulse Width Distortion (Max) | - |
| Rise / Fall Time (Typ) | 465ns, 460ns |
| Current - Output High, Low | 3.6A, 4A |
| Current - Peak Output | 8A |
| Voltage - Forward (Vf) (Typ) | - |
| Voltage - Output Supply | 22V ~ 28V |
| Grade | - |
| Qualification | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads |
| Supplier Device Package | eSOP-R16B |
| Approval Agency | CSA, UL, VDE |
| Base Product Number | SID1181 |
| Current - DC Forward (If) (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SID1181KQ-TL | SID1182K | SID1182K-TL | SID1182KQ |
| Manufacturer | Power Integrations | Power Integrations | Power Integrations | Power Integrations |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DGT ISO 5KV 1CH GT DVR ESOP-R16B | DGT ISO 5KV 1CH GT DVR ESOP-R16B | DGT ISO 5KV 1CH GT DVR ESOP-R16B | DGT ISO 5KV 1CH GT DVR ESOP-R16B |
| Series | Power Integrations | Power Integrations | Power Integrations | Power Integrations |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
