SIE804DF-T1-GE3
lmages are for reference only.SIE804DF-T1-GE3
MOSFET N-CH 150V 37A 10POLARPAK
Datasheet10-PolarPAK® (LH)
75,447 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 150 V 37A (Tc) 5.2W (Ta), 125W (Tc) Surface Mount 10-PolarPAK® (LH)
SIE804DF-T1-GE3
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Vishay Siliconix |
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 37A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 38mOhm @ 7.6A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3000 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 5.2W (Ta), 125W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 10-PolarPAK® (LH) |
| Package / Case | 10-PolarPAK® (LH) |
| Base Product Number | SIE804 |
| Gate Charge (Qg) (Max) @ Vgs | 105 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |

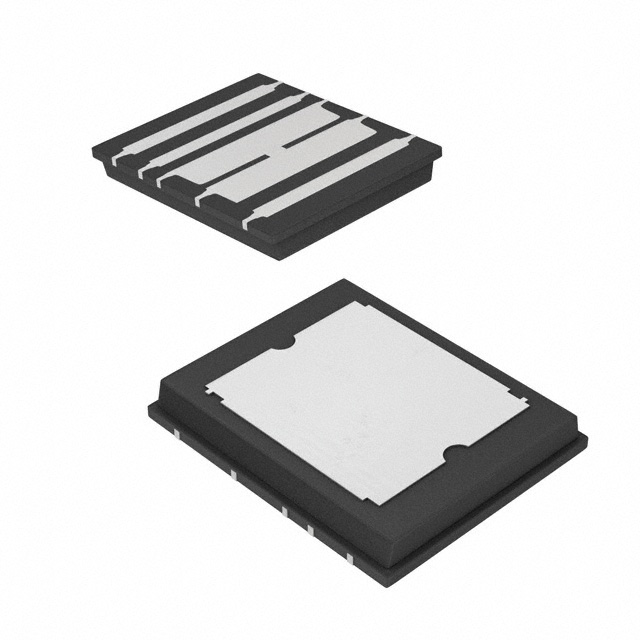

| Part Number | SIE800DF-T1-E3 | SIE800DF-T1-GE3 | SIE802DF-T1-E3 | SIE802DF-T1-GE3 |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 30V 50A 10POLARPAK | MOSFET N-CH 30V 50A 10POLARPAK | MOSFET N-CH 30V 60A 10POLARPAK | MOSFET N-CH 30V 60A 10POLARPAK |
| Series | TrenchFET® | TrenchFET® | TrenchFET® | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
