SIE876DF-T1-GE3
lmages are for reference only.SIE876DF-T1-GE3
MOSFET N-CH 60V 60A 10POLARPAK
Datasheet10-PolarPAK® (L)
28,849 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 60 V 60A (Tc) 5.2W (Ta), 125W (Tc) Surface Mount 10-PolarPAK® (L)
SIE876DF-T1-GE3
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Vishay Siliconix |
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 60A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 6.1mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 4.4V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3100 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 5.2W (Ta), 125W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 10-PolarPAK® (L) |
| Package / Case | 10-PolarPAK® (L) |
| Base Product Number | SIE876 |
| Gate Charge (Qg) (Max) @ Vgs | 77 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

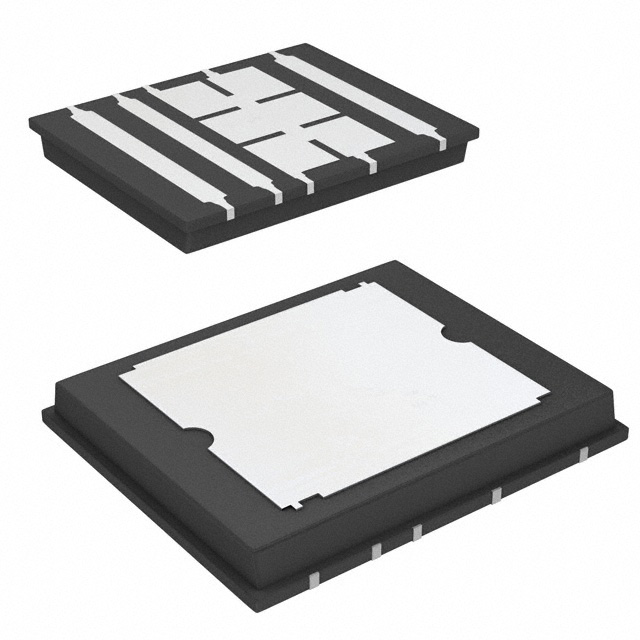

| Part Number | SIE874DF-T1-GE3 | SIE878DF-T1-GE3 | BS170PSTOA | AUIRF4104S |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | Diodes Incorporated | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 20V 60A 10POLARPAK | MOSFET N-CH 25V 45A 10POLARPAK | MOSFET N-CH 60V 270MA E-LINE | MOSFET N-CH 40V 75A D2PAK |
| Series | TrenchFET® | TrenchFET® | - | HEXFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tube |
