Product CatalogPart Number
SIHG24N65E-E3
Manufacturer
Vishay SiliconixDescription
MOSFET N-CH 650V 24A TO247AC
Datasheet
DatasheetPackage
TO-247-3
In Stock
77,343 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SIHG24N65E-E3
SIHG24N65E-E3

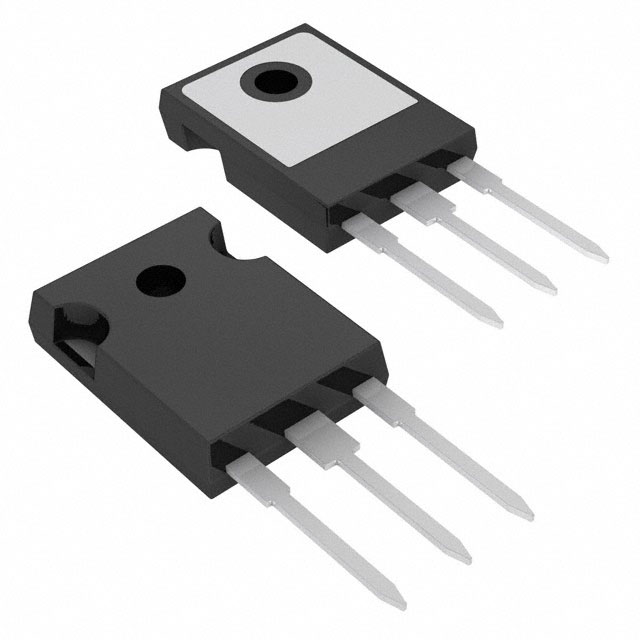

lmages are for reference only.Payment Methods
Delivery Services
N-Channel 650 V 24A (Tc) 250W (Tc) Through Hole TO-247AC
Quick Inquiry
SIHG24N65E-E3
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Vishay Siliconix |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 24A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 145mOhm @ 12A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 2740 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 250W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247AC |
| Package / Case | TO-247-3 |
| Base Product Number | SIHG24 |
| Gate Charge (Qg) (Max) @ Vgs | 122 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | SIHG24N65E-GE3 | SIHG24N65EF-GE3 | SIHG24N80AE-GE3 | SIHG24N80AEF-GE3 |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 650V 24A TO247AC | MOSFET N-CH 650V 24A TO247AC | MOSFET N-CH 800V 21A TO247AC | EF SERIES POWER MOSFET WITH FAST |
| Series | - | E | - | EF |
| Packaging | Tube | Tube | Tube | Tube |
