Product CatalogPart Number
SIM06R68M10AE
Manufacturer
MeritekDescription
MOLDED IND 0806 0.68UH M SHLD
Datasheet
DatasheetPackage
0806 (2016 Metric)
In Stock
76,604 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SIM06R68M10AE
SIM06R68M10AE

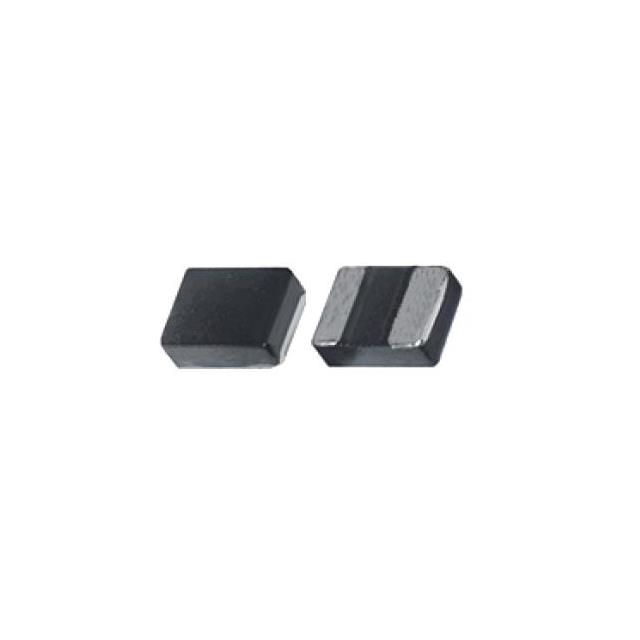

lmages are for reference only.Payment Methods
Delivery Services
0.68 µH Shielded Molded Inductor 3.4 A 50mOhm Max 0806 (2016 Metric) Molded Inductors, Molding Power Choke
Quick Inquiry
SIM06R68M10AE
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Meritek |
| Series | SIM |
| Packaging | Tape & Reel (TR)-->Strip |
| RoHS Status | RoHS Compliant |
| Type | Molded |
| Material - Core | Metal |
| Inductance | 0.68 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3.4 A |
| Current - Saturation (Isat) | 4.4A |
| Shielding | Shielded |
| DC Resistance (DCR) | 50mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | Molded Inductors, Molding Power Choke |
| Mounting Type | Surface Mount |
| Package / Case | 0806 (2016 Metric) |
| Supplier Device Package | 0806 (2016 Metric) |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.031" (0.80mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | SIM06R68M10MAE | SIM061R0M10AE | SIM061R0M10MAE | SIM061R5M10AE |
| Manufacturer | Meritek | Meritek | Meritek | Meritek |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | MOLDED IND 0806 0.68UH M SHLD AE | MOLDED IND 0806 1.0UH M SHLD | MOLDED IND 0806 1.0UH M SHLD AEC | MOLDED IND 0806 1.5UH M SHLD |
| Series | Meritek | Meritek | Meritek | Meritek |
| Packaging | Tape & Reel (TR)-->Strip | Tape & Reel (TR)-->Strip | Strip | Tape & Reel (TR)-->Strip |
