Product CatalogPart Number
SIM084R7M12AE
Manufacturer
MeritekDescription
MOLDED IND 1008 4.7UH M SHLD
Datasheet
DatasheetPackage
1008 (2520 Metric)
In Stock
89,529 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SIM084R7M12AE
SIM084R7M12AE

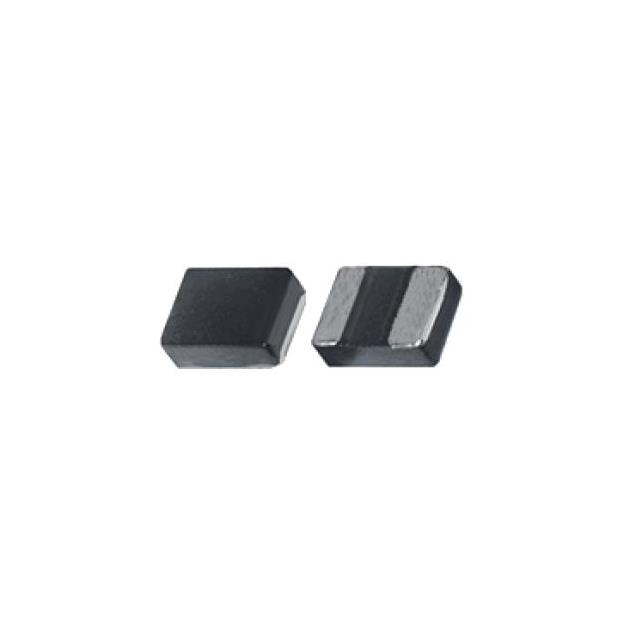

lmages are for reference only.Payment Methods
Delivery Services
4.7 µH Shielded Molded Inductor 5.6 A 18mOhm Max 1008 (2520 Metric) Molded Inductors, Molding Power Choke
Quick Inquiry
SIM084R7M12AE
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Meritek |
| Series | SIM |
| Packaging | Tape & Reel (TR)-->Strip |
| RoHS Status | RoHS Compliant |
| Type | Molded |
| Material - Core | Metal |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5.6 A |
| Current - Saturation (Isat) | 5.6A |
| Shielding | Shielded |
| DC Resistance (DCR) | 18mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | Molded Inductors, Molding Power Choke |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | SIM084R7M12MAE | SIM061R0M10AE | SIM061R0M10MAE | SIM061R5M10AE |
| Manufacturer | Meritek | Meritek | Meritek | Meritek |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | MOLDED IND 1008 4.7UH M SHLD AE | MOLDED IND 0806 1.0UH M SHLD | MOLDED IND 0806 1.0UH M SHLD AEC | MOLDED IND 0806 1.5UH M SHLD |
| Series | Meritek | Meritek | Meritek | Meritek |
| Packaging | Tape & Reel (TR)-->Strip | Tape & Reel (TR)-->Strip | Strip | Tape & Reel (TR)-->Strip |
