SIP20C-05S3V3
lmages are for reference only.SIP20C-05S3V3
DC DC CONVERTER 3.3V 20W
Datasheet11-SIP Module
20,476 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 3.3V 6A 4.5V - 5.5V Input
SIP20C-05S3V3
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ARTESYN / Advanced Energy |
| Series | SIP20C (20W) |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 6A |
| Power (Watts) | 20 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OTP, OVP, SCP, UVLO |
| Operating Temperature | -25°C ~ 85°C |
| Efficiency | 90% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 11-SIP Module |
| Size / Dimension | 2.50" L x 0.23" W x 0.55" H (63.5mm x 5.8mm x 14.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | - |
| Product Attribute | |
 |
 |
|

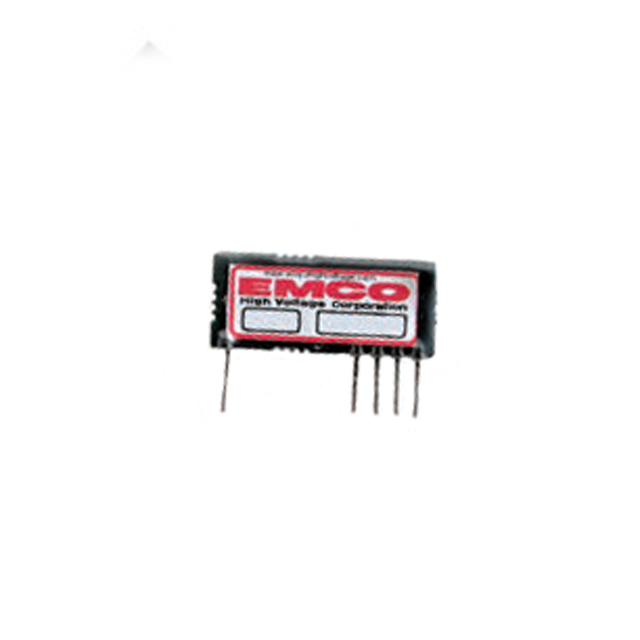

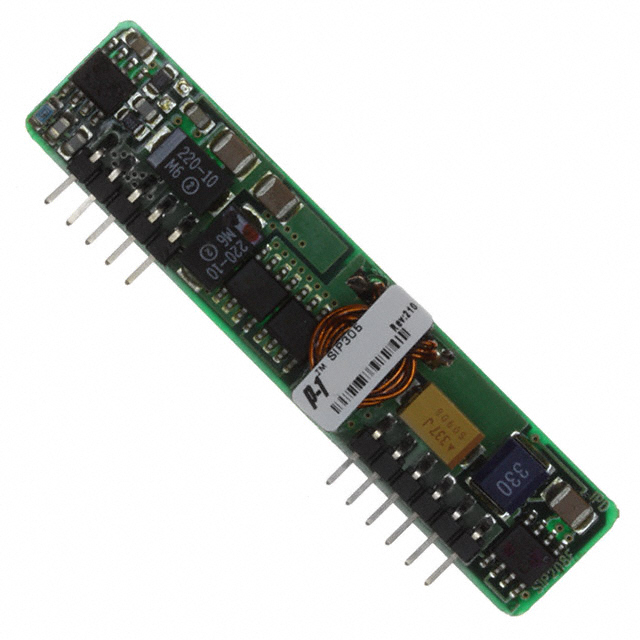

| Part Number | SIP20C-05S2V5 | SIP100 | SIP305 | SIP305R |
| Manufacturer | ARTESYN / Advanced Energy | XP Power | Bel Power Solutions | Bel Power Solutions |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant |
| Description | DC DC CONVERTER 2.5V 15W | DC DC CONVERTER 25-100V 1W | DC DC CONVERTER 5V 20W | DC DC CONVERTER 5V 20W |
| Series | ARTESYN / Advanced Energy | XP Power | Bel Power Solutions | Bel Power Solutions |
| Packaging | Bulk | Bulk | Bulk | Bulk |
