SIP4612ADVP-T1-E3
lmages are for reference only.SIP4612ADVP-T1-E3
IC PWR SWITCH P-CHAN 1:1 SC75-6
DatasheetPowerPAK® TSC-75-6
97,592 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Power Switch/Driver 1:1 P-Channel 1A PowerPAK® TSC75-6
SIP4612ADVP-T1-E3
| Category | Integrated Circuits (ICs) - Power Management PMIC - Power Distribution Switches-Load Drivers |
| Manufacturer | Vishay Siliconix |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | P-Channel |
| Interface | On/Off |
| Voltage - Load | 2.4V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1A |
| Rds On (Typ) | 150mOhm |
| Input Type | Non-Inverting |
| Features | - |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® TSC75-6 |
| Package / Case | PowerPAK® TSC-75-6 |
| Base Product Number | SIP4612 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |

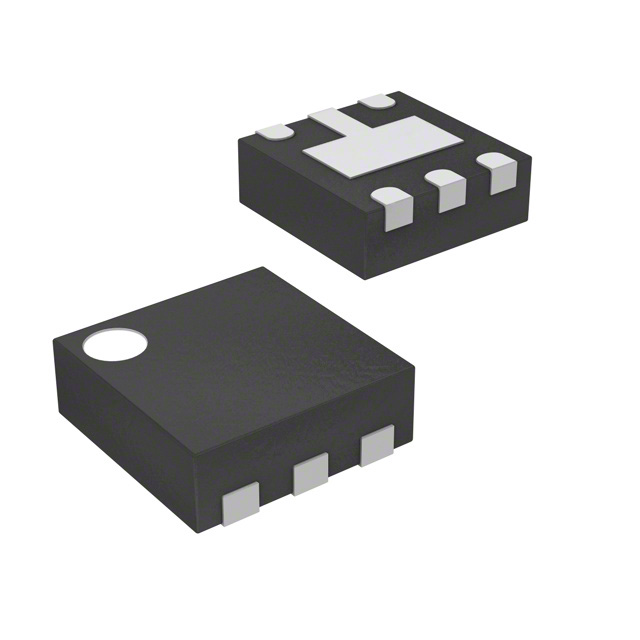

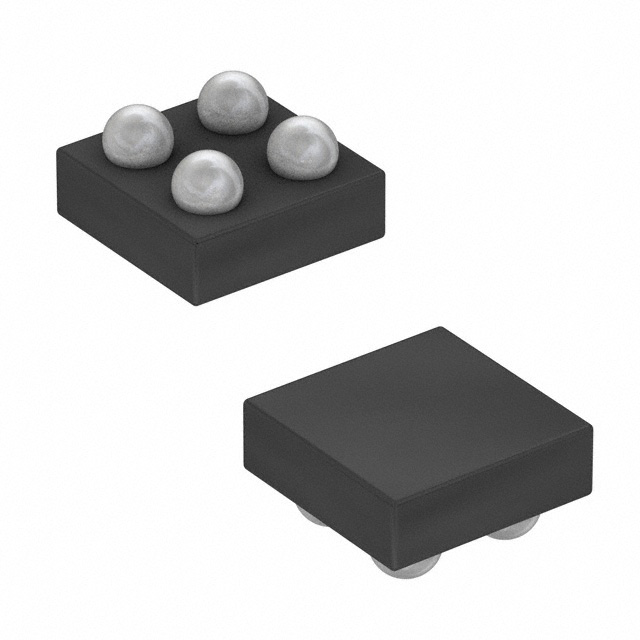

| Part Number | SIP4612BDVP-T1-E3 | SI1865DDL-T1-GE3 | SIP32454DB-T2-GE1 | SIP4282ADVP2-T1GE3 |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC PWR SWITCH P-CHAN 1:1 SC75-6 | IC PWR SWITCH P-CHAN 1:1 SC70-6 | IC PWR SWITCH N-CHAN 1:1 4WCSP | IC PWR SWITCH P-CHAN 1:1 PWRPAK |
| Series | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
