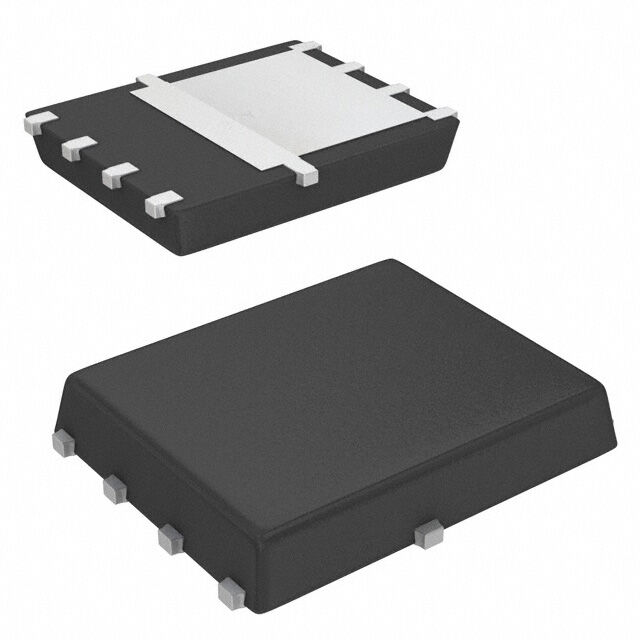

lmages are for reference only.SIR5808DP-T1-RE3
N-CHANNEL 80 V (D-S) MOSFET POWE
DatasheetPowerPAK® SO-8
35,128 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 80 V 18.8A (Ta), 66.8A (Tc) 5.2W (Ta), 65.7W (Tc) Surface Mount PowerPAK® SO-8
SIR5808DP-T1-RE3
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Vishay Siliconix |
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 80 V |
| Current - Continuous Drain (Id) @ 25°C | 18.8A (Ta), 66.8A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 7.5V, 10V |
| Rds On (Max) @ Id, Vgs | 157mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1210 pF @ 40 V |
| FET Feature | - |
| Power Dissipation (Max) | 5.2W (Ta), 65.7W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® SO-8 |
| Package / Case | PowerPAK® SO-8 |
| Base Product Number | SIR5808 |
| Gate Charge (Qg) (Max) @ Vgs | 24 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SIR5802DP-T1-BE3 | SIR5802DP-T1-RE3 | SIR580DP-T1-BE3 | SIR580DP-T1-RE3 |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | N-CHANNEL 80 V (D-S) MOSFET 150C | N-CHANNEL 80 V (D-S) MOSFET POWE | N-CHANNEL 80 V (D-S) MOSFET 150C | N-CHANNEL 80-V (D-S) MOSFET |
| Series | TrenchFET® Gen V | TrenchFET® Gen V | TrenchFET® Gen V | TrenchFET® Gen V |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
