SIR698DP-T1-GE3

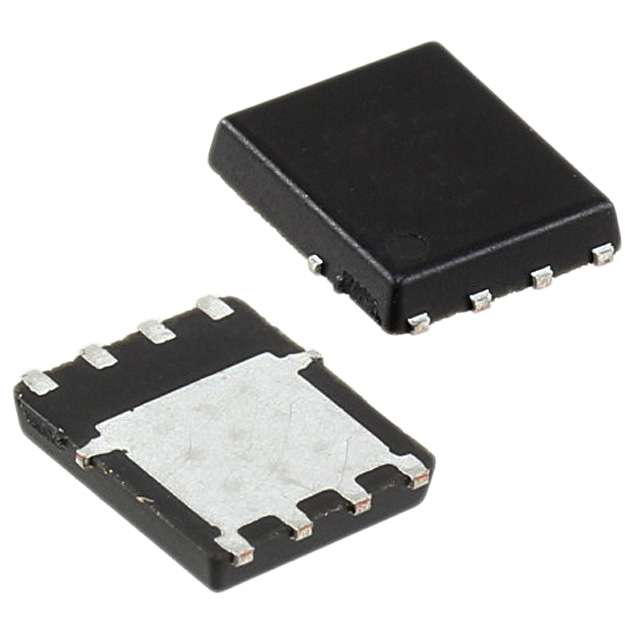

lmages are for reference only.SIR698DP-T1-GE3
MOSFET N-CH 100V 7.5A PPAK SO-8
DatasheetPowerPAK® SO-8
51,961 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 100 V 7.5A (Tc) 3.7W (Ta), 23W (Tc) Surface Mount PowerPAK® SO-8
SIR698DP-T1-GE3
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Vishay Siliconix |
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 7.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 195mOhm @ 2.5A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 210 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.7W (Ta), 23W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® SO-8 |
| Package / Case | PowerPAK® SO-8 |
| Base Product Number | SIR698 |
| Gate Charge (Qg) (Max) @ Vgs | 8 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
 |
 |
| Part Number | SIR690DP-T1-GE3 | SIR690DP-T1-RE3 | SIR692DP-T1-RE3 | SIR696DP-T1-GE3 |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 200V 34.4A PPAK SO-8 | MOSFET N-CH 200V 34.4A PPAK SO-8 | MOSFET N-CH 250V 24.2A PPAK SO-8 | MOSFET N-CH 125V 60A PPAK SO-8 |
| Series | ThunderFET® | ThunderFET® | ThunderFET® | ThunderFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
