SIR800ADP-T1-GE3

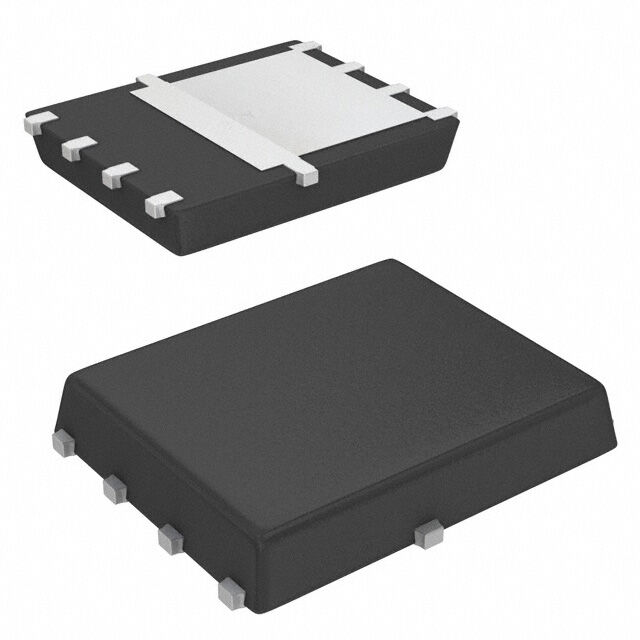

lmages are for reference only.SIR800ADP-T1-GE3
MOSFET N-CH 20V 50.2A/177A PPAK
DatasheetPowerPAK® SO-8
54,764 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 20 V 50.2A (Ta), 177A (Tc) 5W (Ta), 62.5W (Tc) Surface Mount PowerPAK® SO-8
SIR800ADP-T1-GE3
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Vishay Siliconix |
| Series | TrenchFET® Gen IV |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 50.2A (Ta), 177A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 10V |
| Rds On (Max) @ Id, Vgs | 1.35mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Vgs (Max) | +12V, -8V |
| Input Capacitance (Ciss) (Max) @ Vds | 3415 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 5W (Ta), 62.5W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® SO-8 |
| Package / Case | PowerPAK® SO-8 |
| Base Product Number | SIR800 |
| Gate Charge (Qg) (Max) @ Vgs | 53 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | SIR800ADP-T1-RE3 | SIR800DP-T1-GE3 | SIR800DP-T1-RE3 | SFP9Z34 |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | MOSFET N-CH 20V 50.2A/177A PPAK | MOSFET N-CH 20V 50A PPAK SO-8 | MOSFET N-CH 20V 50A PPAK SO-8 | MOSFET P-CH 60V 18A TO220-3 |
| Series | TrenchFET® Gen IV | TrenchFET® | TrenchFET® Gen III | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tube |
