SIT3372AC-2B9-25NB10.000000
lmages are for reference only.Payment Methods
Delivery Services

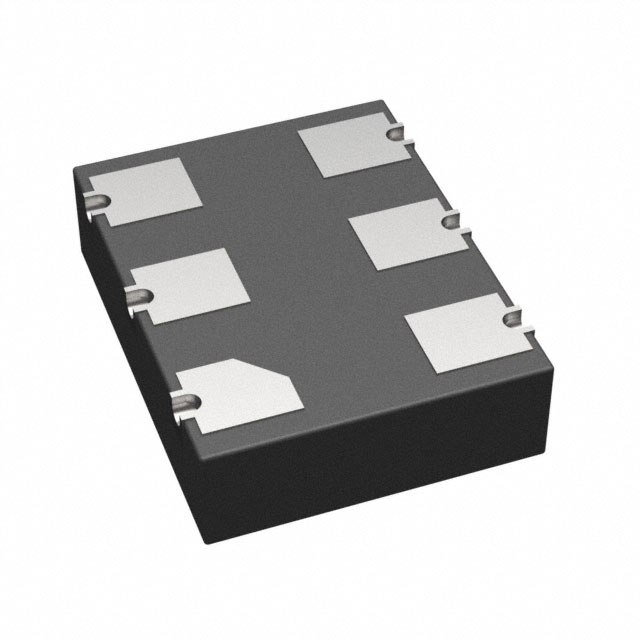

10 MHz VCXO LVDS Oscillator 2.5V 6-SMD, No Lead
SIT3372AC-2B9-25NB10.000000
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | SiTime |
| Series | SiT3372, Elite Platform™ |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | MEMS |
| Type | VCXO |
| Frequency | 10 MHz |
| Function | - |
| Output | LVDS |
| Voltage - Supply | 2.5V |
| Frequency Stability | ±35ppm |
| Absolute Pull Range (APR) | ±10ppm |
| Operating Temperature | -20°C ~ 70°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 84mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.035" (0.90mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
 |
| Part Number | SIT3372AC-2B9-25NB10.240000 | SIT3372AC-2B9-25NB10.240000 | SIT3372AC-2B9-25NB100.000000 | SIT3372AC-2B9-25NB122.880000 |
| Manufacturer | SiTime | SiTime | SiTime | SiTime |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MEMS OSC VCXO 10.2400MHZ LVDS | MEMS OSC VCXO 10.2400MHZ LVDS | MEMS OSC VCXO 100.0000MHZ LVDS | MEMS OSC VCXO 122.8800MHZ LVDS |
| Series | SiTime | SiTime | SiTime | SiTime |
| Packaging | Strip | Strip | Strip | Strip |
