SIT3372AC-2E3-25NY80.000000
lmages are for reference only.Payment Methods
Delivery Services

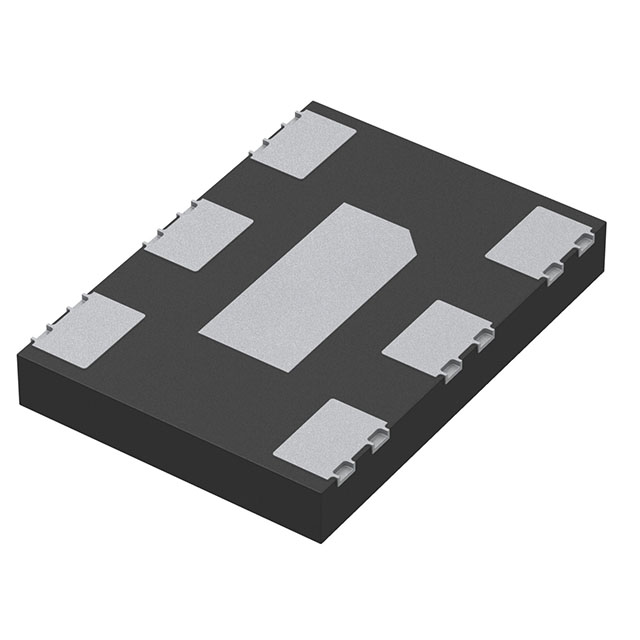

80 MHz VCXO LVDS Oscillator 2.5V 6-SMD, No Lead Exposed Pad
SIT3372AC-2E3-25NY80.000000
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | SiTime |
| Series | SiT3372, Elite Platform™ |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | MEMS |
| Type | VCXO |
| Frequency | 80 MHz |
| Function | - |
| Output | LVDS |
| Voltage - Supply | 2.5V |
| Frequency Stability | ±50ppm |
| Absolute Pull Range (APR) | ±745ppm |
| Operating Temperature | -20°C ~ 70°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 84mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead Exposed Pad |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.035" (0.90mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |
| Part Number | SIT3372AC-2E3-25NC10.000000 | SIT3372AC-2E3-25NC10.240000 | SIT3372AC-2E3-25NC100.000000 | SIT3372AC-2E3-25NC122.880000 |
| Manufacturer | SiTime | SiTime | SiTime | SiTime |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MEMS OSC VCXO 10.0000MHZ LVDS | MEMS OSC VCXO 10.2400MHZ LVDS | MEMS OSC VCXO 100.0000MHZ LVDS | MEMS OSC VCXO 122.8800MHZ LVDS |
| Series | SiTime | SiTime | SiTime | SiTime |
| Packaging | Strip | Strip | Strip | Strip |
