SIT3372AI-2E9-33NY77.760000
lmages are for reference only.Payment Methods
Delivery Services
77.76 MHz VCXO LVDS Oscillator 3.3V 6-SMD, No Lead Exposed Pad
SIT3372AI-2E9-33NY77.760000
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | SiTime |
| Series | SiT3372, Elite Platform™ |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | MEMS |
| Type | VCXO |
| Frequency | 77.76 MHz |
| Function | - |
| Output | LVDS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±35ppm |
| Absolute Pull Range (APR) | ±760ppm |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 84mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead Exposed Pad |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
 |

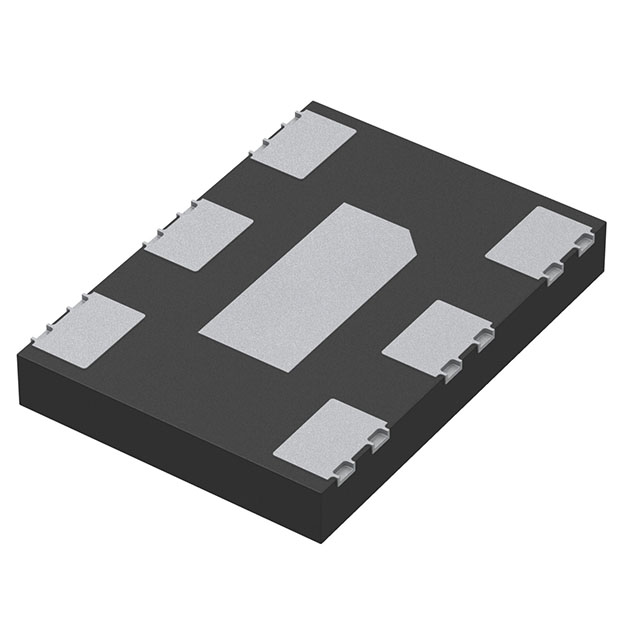

| Part Number | SIT3372AI-2E9-33NB10.000000 | SIT3372AI-2E9-33NB10.240000 | SIT3372AI-2E9-33NB100.000000 | SIT3372AI-2E9-33NB122.880000 |
| Manufacturer | SiTime | SiTime | SiTime | SiTime |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MEMS OSC VCXO 10.0000MHZ LVDS | MEMS OSC VCXO 10.2400MHZ LVDS | MEMS OSC VCXO 100.0000MHZ LVDS | MEMS OSC VCXO 122.8800MHZ LVDS |
| Series | SiTime | SiTime | SiTime | SiTime |
| Packaging | Strip | Strip | Strip | Strip |
