SIT5346AICFQ-33E0A24.192000
lmages are for reference only.Payment Methods
Delivery Services

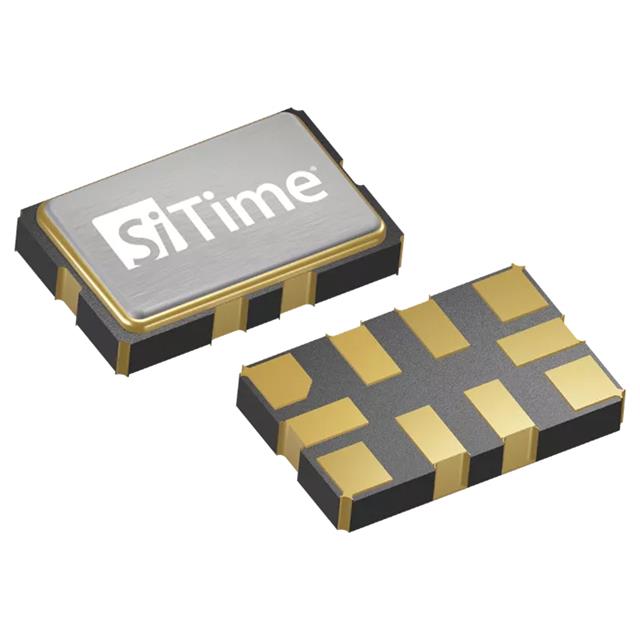

24.192 MHz TCXO Clipped Sine Wave Oscillator 3.3V Enable/Disable 10-SMD, No Lead
SIT5346AICFQ-33E0A24.192000
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | SiTime |
| Series | SiT5346, Endura™ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | MEMS |
| Type | TCXO |
| Frequency | 24.192 MHz |
| Function | Enable/Disable |
| Output | Clipped Sine Wave |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±100ppb |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 53mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-SMD, No Lead |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Height - Seated (Max) | 0.042" (1.06mm) |
| Base Product Number | SIT5346 |
| Product Attribute |  |
 |
 |
 |
| Part Number | SIT5346AICFQ-33E0A40.000000 | SIT5346AICFQ-33E0A60.000000 | SIT5346AICFQ033ITB10.000000 | SIT5346ACCFQ-33E0B24.000000 |
| Manufacturer | SiTime | SiTime | SiTime | SiTime |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MEMS OSC TCXO 40.000000 MHZ CLIP | MEMS OSC TCXO 60.000000 MHZ CLIP | MEMS OSC TCXO 10.000000 MHZ CLIP | MEMS OSC TCXO 24.000000 MHZ CLIP |
| Series | SiTime | SiTime | SiTime | SiTime |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Strip | Tape & Reel (TR) |
