SJ4012N2RP

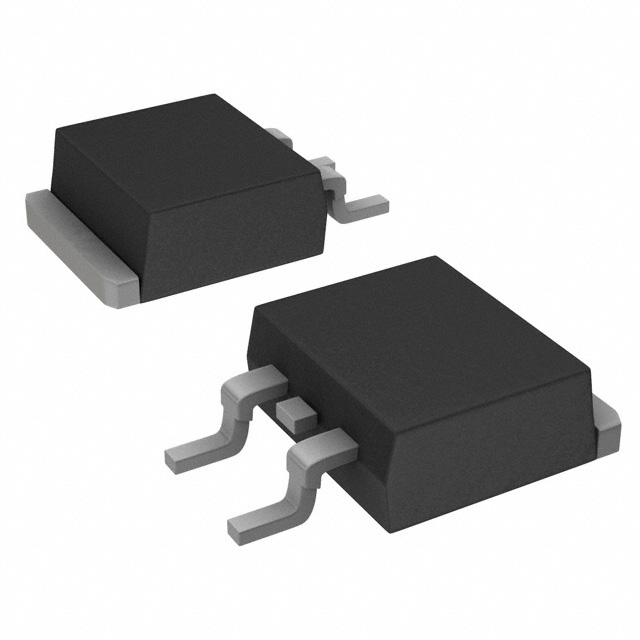

lmages are for reference only.SJ4012N2RP
HIGH TJ 400V 12A SCR TO263
DatasheetTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
80,954 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
SCR 600 V 12 A Standard Recovery Surface Mount TO-263 (D2PAK)
SJ4012N2RP
| Category | Discrete Semiconductor Products - Thyristors - SCRs |
| Manufacturer | Littelfuse Inc. |
| Series | SJ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Voltage - Off State | 600 V |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Current - Gate Trigger (Igt) (Max) | 10 mA |
| Current - On State (It (AV)) (Max) | 7.6 A |
| Current - Hold (Ih) (Max) | 35 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 100A, 120A |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263 (D2PAK) |
| Voltage - On State (Vtm) (Max) | 1.6 V |
| Current - On State (It (RMS)) (Max) | 12 A |
| Current - Off State (Max) | 10 µA |
| Base Product Number | SJ4012 |
| Product Attribute |  |
 |
|
 |
| Part Number | SJ4012N2TP | SJ4012NRP | SJ4012NTP | SJ4004DS2RP |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | HIGH TJ 400V 12A SCR TO263 | HIGH TJ 400V 12A SCR TO263 | HIGH TJ 400V 12A SCR TO263 | HT SEN SCR 400V 4A 200A TO252 |
| Series | SJ | SJ | SJ | SJxx04xSx |
| Packaging | Tube | Tape & Reel (TR) | Tube | Tape & Reel (TR) |
