SKY13522-644LF
lmages are for reference only.SKY13522-644LF
IC RF SWITCH SPDT 3GHZ 8QFN
Datasheet8-XFQFN Exposed Pad
13,753 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Switch IC CDMA, GSM, WCDMA SPDT 3 GHz 50Ohm 8-QFN (1.1x1.1)
SKY13522-644LF
| Category | RF and Wireless - RF Switches - |
| Manufacturer | Skyworks Solutions Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| RF Type | CDMA, GSM, WCDMA |
| Topology | Reflective |
| Circuit | SPDT |
| Frequency Range | 700MHz ~ 6GHz |
| Isolation | 46dB |
| Insertion Loss | 0.7dB |
| Test Frequency | 2.3Ghz ~ 3.8GHz |
| P1dB | - |
| IIP3 | 57dBm |
| Features | - |
| Impedance | 50Ohm |
| Voltage - Supply | 2.5V ~ 3.3V |
| Operating Temperature | -30°C ~ 90°C |
| Package / Case | 8-XFQFN Exposed Pad |
| Supplier Device Package | 8-QFN (1.1x1.1) |
| Base Product Number | SKY13522 |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |

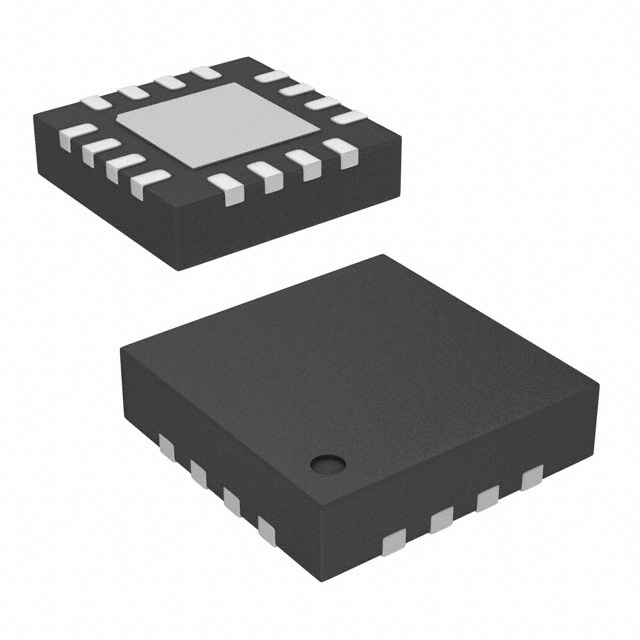

| Part Number | SKY13522-644LF | SKY12207-306LF | SKY12207-306LF | SKY12207-478LF |
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC RF SWITCH SPDT 3GHZ 8QFN | IC RF SWITCH SPDT 4GHZ 16QFN | IC RF SWITCH SPDT 4GHZ 16QFN | IC RF SWITCH SPDT 4GHZ 16QFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
