SLA5096
lmages are for reference only.SLA5096
MOSFET 3N/3P-CH 55V 8A 15ZIP
Datasheet15-SIP Exposed Tab, Formed Leads
79,315 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 55V 8A Through Hole 15-ZIP
SLA5096
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Sanken Electric USA Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 3 N and 3 P-Channel (3-Phase Bridge) |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 55V |
| Current - Continuous Drain (Id) @ 25°C | 8A |
| Rds On (Max) @ Id, Vgs | - |
| Vgs(th) (Max) @ Id | - |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Input Capacitance (Ciss) (Max) @ Vds | - |
| Power - Max | - |
| Operating Temperature | - |
| Mounting Type | Through Hole |
| Package / Case | 15-SIP Exposed Tab, Formed Leads |
| Supplier Device Package | 15-ZIP |
| Base Product Number | SLA50 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

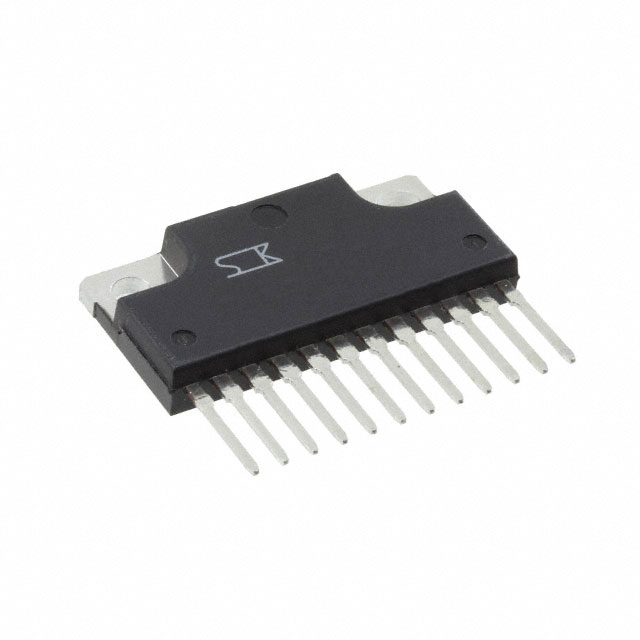

| Part Number | SLA5037 | SLA5041 | SLA5059 | SLA5060 |
| Manufacturer | Sanken Electric USA Inc. | Sanken Electric USA Inc. | Sanken Electric USA Inc. | Sanken Electric USA Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | MOSFET 4N-CH 100V 10A 12SIP | MOSFET 4N-CH 200V 10A 12SIP | MOSFET 3N/3P-CH 60V 4A 12SIP | MOSFET 3N/3P-CH 60V 6A 12SIP |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Bulk |
