SM1605A-2R2MHF

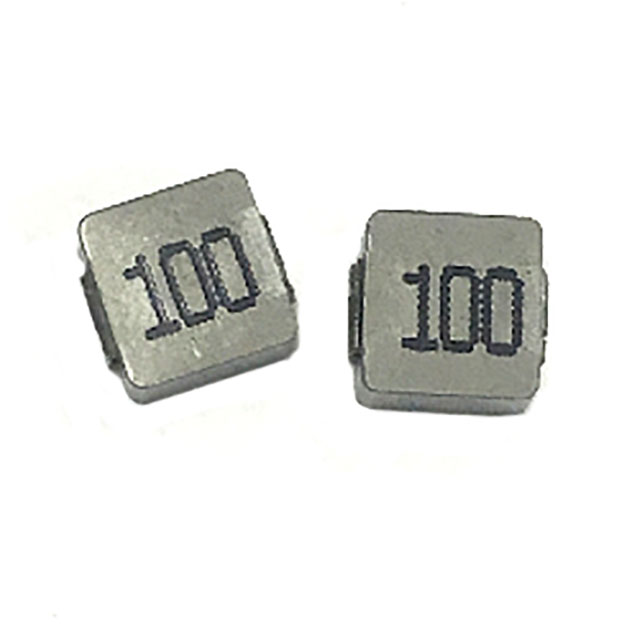

lmages are for reference only.SM1605A-2R2MHF
MOLDED INDUCTOR0.22UH 9.35M 11A
DatasheetNonstandard
38,995 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.2 µH Unshielded Molded Inductor 2.75 A 83.5mOhm Max Nonstandard
SM1605A-2R2MHF
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | ITG Electronics, Inc. |
| Series | SM1605A |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Molded |
| Material - Core | Metal |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.75 A |
| Current - Saturation (Isat) | 3.5A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 83.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.173" L x 0.165" W (4.40mm x 4.20mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |
| Part Number | SM1605A-2R2MHF | SM1608A-1R0MHF | SM1608A-1R0MHF | SM1608A-1R2MHF |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | MOLDED INDUCTOR0.22UH 9.35M 11A | MOLDED INDUCTOR 1UH 19.2M 7A | MOLDED INDUCTOR 1UH 19.2M 7A | MOLDED INDUCTOR 1.2UH 23M 7A |
| Series | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
