SM2011A-R68MHF

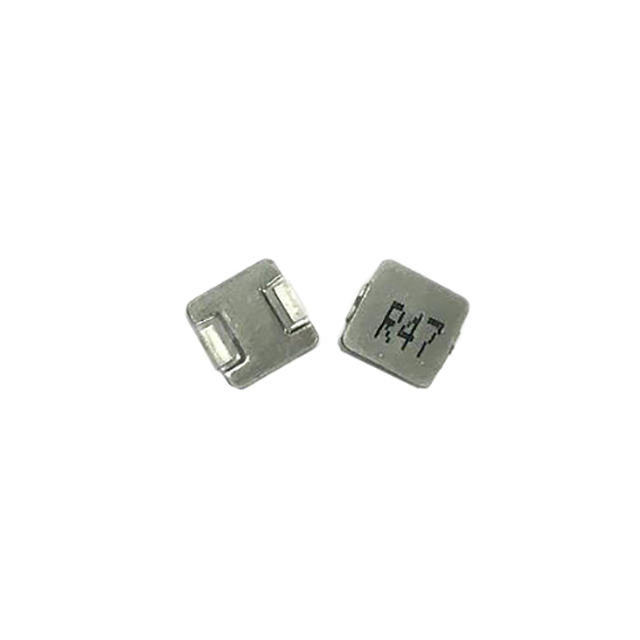

lmages are for reference only.SM2011A-R68MHF
MOLDED INDUCTOR 0.68UH9.8M13.5A
DatasheetNonstandard
80,674 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
680 nH Unshielded Molded Inductor 9 A 11.5mOhm Max Nonstandard
SM2011A-R68MHF
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | ITG Electronics, Inc. |
| Series | SM2011A |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Molded |
| Material - Core | - |
| Inductance | 680 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 9 A |
| Current - Saturation (Isat) | 9A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 11.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.213" L x 0.205" W (5.40mm x 5.20mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
|
| Part Number | SM2011A-1R0MHF | SM2011A-1R5MHF | SM2011A-2R2MHF | SM2011A-2R2MHF |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | MOLDED INDUCTOR 1UH 11.2M 11A | MOLDED INDUCTOR1.5UH13.75M10.5A | MOLDED INDUCTOR 2.2UH 24.5M 7.5 | MOLDED INDUCTOR 2.2UH 24.5M 7.5 |
| Series | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
