SM2511-R10MHF
lmages are for reference only.SM2511-R10MHF
FIXED IND 100NH 32.5A 1.7MOHM SM
DatasheetNonstandard
88,238 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100 nH Shielded Molded Inductor 32.5 A 1.7mOhm Max Nonstandard
SM2511-R10MHF
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | ITG Electronics, Inc. |
| Series | SM2511 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Molded |
| Material - Core | Metal |
| Inductance | 100 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 32.5 A |
| Current - Saturation (Isat) | 60A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.7mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.263" L x 0.255" W (6.68mm x 6.47mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
 |

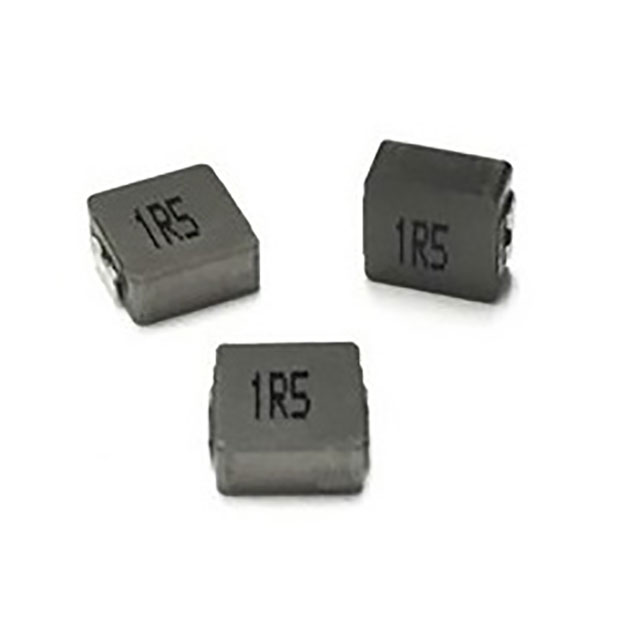

| Part Number | SM2511-1R0MHF | SM2511-1R5MHF | SM2511-1R5MHF | SM2511-R22MHF |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 1UH 11A 10 MOHM SMD | FIXED IND 1.5UH 9A 15 MOHM SMD | FIXED IND 1.5UH 9A 15 MOHM SMD | FIXED IND 220NH 23A 2.8MOHM SMD |
| Series | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
