Product CatalogPart Number
SM4ETW503
Manufacturer
Nidec Components CorporationDescription
TRIMMER 50K OHM 0.25W J LEAD TOP
Datasheet
DatasheetPackage
-
In Stock
24,266 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SM4ETW503
SM4ETW503

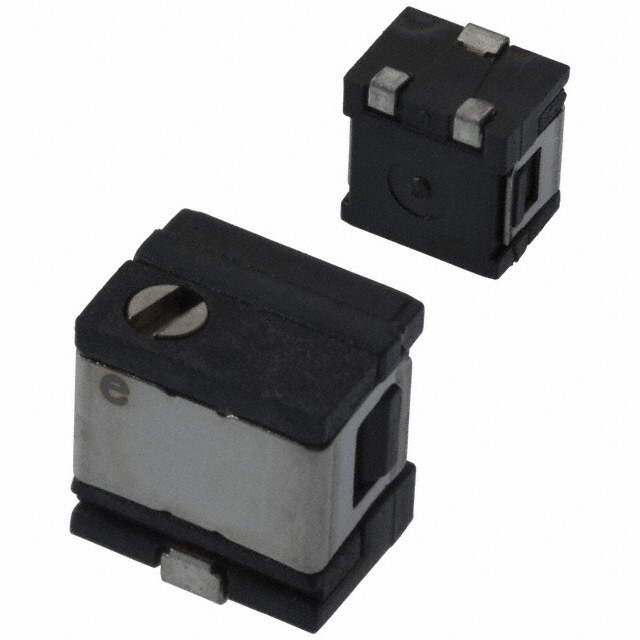

lmages are for reference only.Payment Methods
Delivery Services
50 kOhms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 12.0 Turn Top Adjustment
Quick Inquiry
SM4ETW503
Specifications
| Category | Potentiometers, Variable Resistors - Trimmer Potentiometers - |
| Manufacturer | Nidec Components Corporation |
| Series | SM4 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 50 kOhms |
| Power (Watts) | 0.25W, 1/4W |
| Tolerance | ±10% |
| Temperature Coefficient | ±100ppm/°C |
| Number of Turns | 12.0 |
| Adjustment Type | Top Adjustment |
| Resistive Material | Cermet |
| Mounting Type | Surface Mount |
| Termination Style | J Lead |
| Size / Dimension | Rectangular - 0.193" x 0.146" Face (4.90mm x 3.70mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | SM4ETW501 | SM4ETW502 | SM4ETW504 | SM4ETW101 |
| Manufacturer | Nidec Components Corporation | Nidec Components Corporation | Nidec Components Corporation | Nidec Components Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TRIMMER 500 OHM 0.25W J LEAD TOP | TRIMMER 5K OHM 0.25W J LEAD TOP | TRIMMER 500KOHM 0.25W J LEAD TOP | TRIMMER 100 OHM 0.25W J LEAD TOP |
| Series | SM4 | SM4 | SM4 | SM4 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
SM4ETA101
Nidec Components Corporation

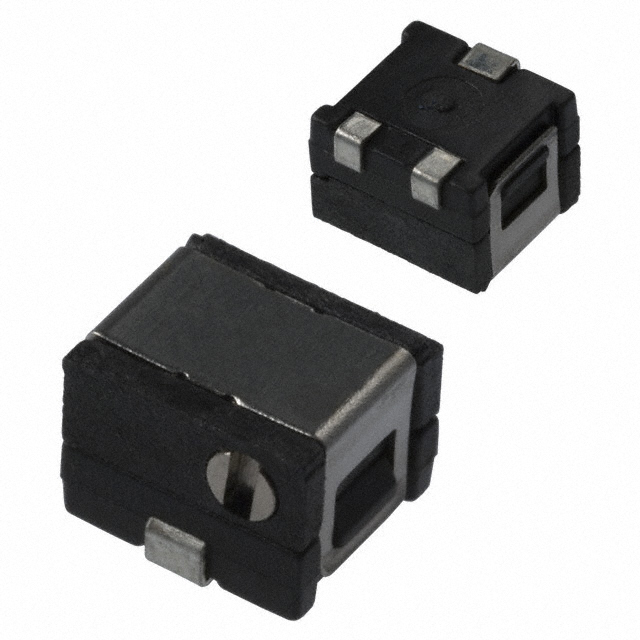

SM4ETA102
