SM50B-SHLDS-G-TF(LF)(SN)
lmages are for reference only.SM50B-SHLDS-G-TF(LF)(SN)
CONN HEADER SMD R/A 50POS 1MM
Datasheet-
47,481 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Connector Header Surface Mount, Right Angle 50 position 0.039" (1.00mm)

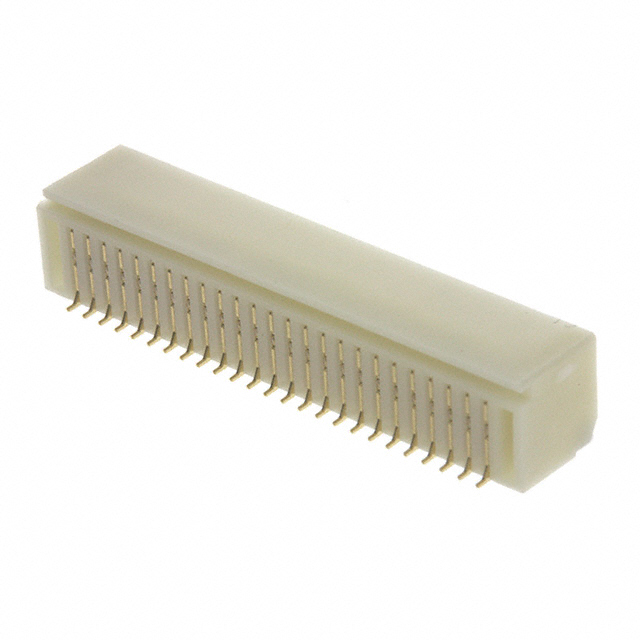

SM50B-SHLDS-G-TF(LF)(SN)
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | JST Sales America Inc. |
| Series | SHLD |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header |
| Contact Type | Non-Gendered |
| Pitch - Mating | 0.039" (1.00mm) |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.215" (5.45mm) |
| Contact Shape | - |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyamide (PA), Nylon |
| Features | Solder Retention |
| Operating Temperature | -25°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | 1A |
| Voltage Rating | 50V |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | SM50B-SH |
| Product Attribute |  |
 |
|
|
| Part Number | SM50B-SRDS-G-TF | TSM-113-01-F-DV-LC-P-TR | HMTSW-112-10-G-D-520-RA | 54201-T0802ALF |
| Manufacturer | JST Sales America Inc. | Samtec Inc. | Samtec Inc. | Amphenol ICC (FCI) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | CONN HEADER SMD R/A 50POS 1MM | CONN HEADER SMD 26POS 2.54MM | .100" HIGH-TEMP VARIABLE POST HE | CONN HEADER SMD |
| Series | SHD | TSM | Flex Stack, HMTSW | BERGSTIK® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Bulk | Tape & Reel (TR) |
