Product CatalogPart Number
SM5817
Manufacturer
Diotec SemiconductorDescription
DIODE SCHOTTKY 20V 1A MELF
Datasheet
DatasheetPackage
DO-213AB, MELF
In Stock
84,946 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SM5817
SM5817
lmages are for reference only.Payment Methods
Delivery Services
Diode 20 V 1A Surface Mount DO-213AB (MELF)
Quick Inquiry
SM5817
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 750 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 1 mA @ 20 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-213AB, MELF |
| Supplier Device Package | DO-213AB (MELF) |
| Operating Temperature - Junction | -50°C ~ 150°C |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | SM5817PL-TP | SM5817PLHE3-TP | SM5818 | SM5818PL-TP |
| Manufacturer | Micro Commercial Co | Micro Commercial Co | Diotec Semiconductor | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE SCHOTTKY 20V 1A SOD123FL | DIODE SCHOTTKY 20V 1A SOD123FL | DIODE SCHOTTKY 30V 1A MELF | DIODE SCHOTTKY 30V 1A SOD123FL |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
SM5817PL-TP
Micro Commercial Co
SM5817PLHE3-TP
Micro Commercial Co
SM5818
Diotec Semiconductor
SM5818PL-TP
Micro Commercial Co
SM5818PLHE3-TP
Micro Commercial Co

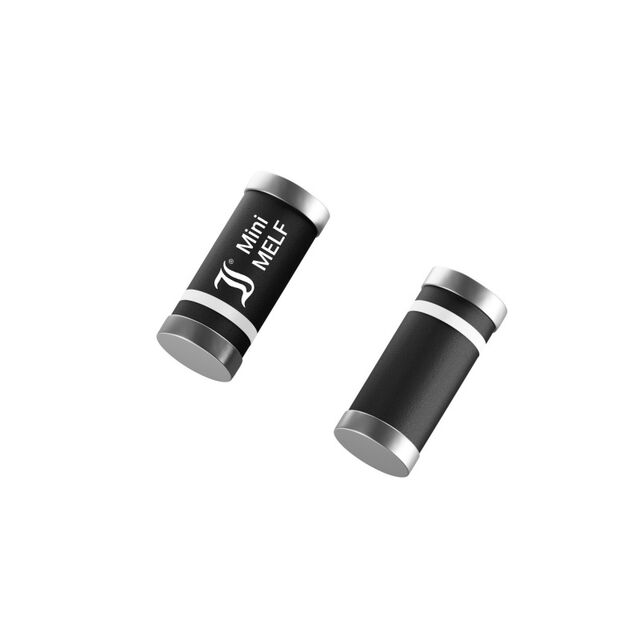

SM5819
Diotec Semiconductor

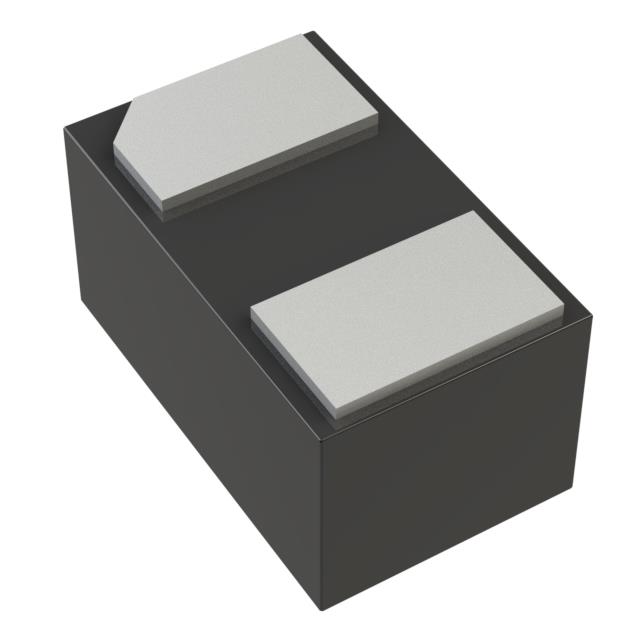

SM5819L2-TP
