SM5S30CA-Q1
lmages are for reference only.SM5S30CA-Q1
SURFACE MOUNT TRANSIENT VOLTAGE
DatasheetDO-218AB
13,411 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
48.4V Clamp 74A Ipp Tvs Diode Surface Mount DO-218AB
SM5S30CA-Q1
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | ANBON SEMICONDUCTOR (INT'L) LIMITED |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 30V |
| Voltage - Breakdown (Min) | 33.3V |
| Voltage - Clamping (Max) @ Ipp | 48.4V |
| Current - Peak Pulse (10/1000µs) | 74A |
| Power - Peak Pulse | 3600W (3.6kW) |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-218AB |
| Supplier Device Package | DO-218AB |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

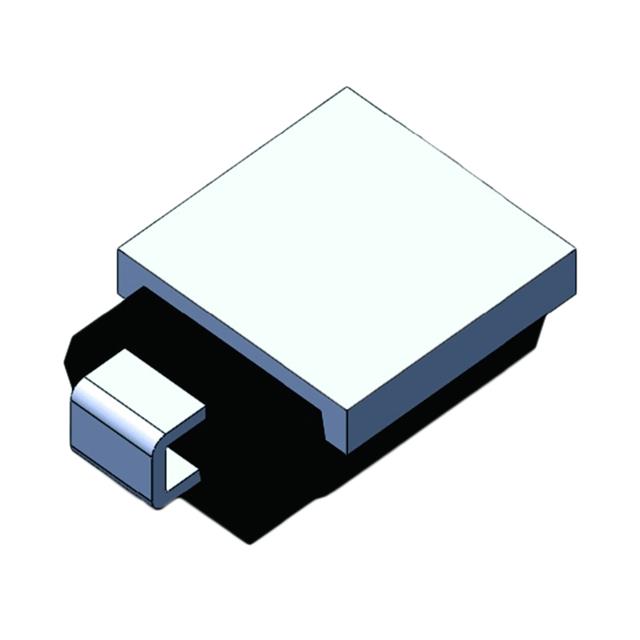

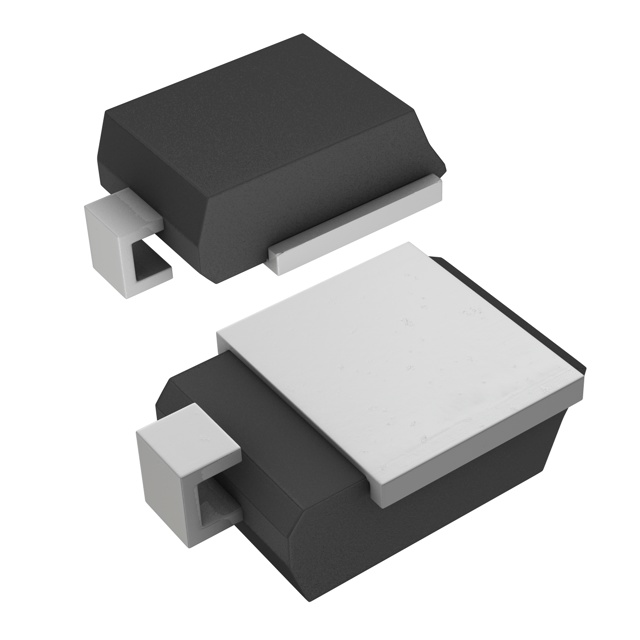

| Part Number | SM5S30CAHE3-TP | SM5S30CAHM3/I | SM5S30A-AU_R2_000A1 | SM5S30A-Q1 |
| Manufacturer | Micro Commercial Co | Vishay General Semiconductor - Diodes Division | Panjit International Inc. | ANBON SEMICONDUCTOR (INT'L) LIMITED |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | 3600W TVS, DO-218AB | 3600 W BI-DIRECTIONAL TVS IS DO- | 3.6KW SURFACE MOUNT TRANSIENT VO | SURFACE MOUNT TRANSIENT VOLTAGE |
| Series | Micro Commercial Co | Vishay General Semiconductor - Diodes Division | Panjit International Inc. | ANBON SEMICONDUCTOR (INT'L) LIMITED |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
