SM6S22CA-Q1

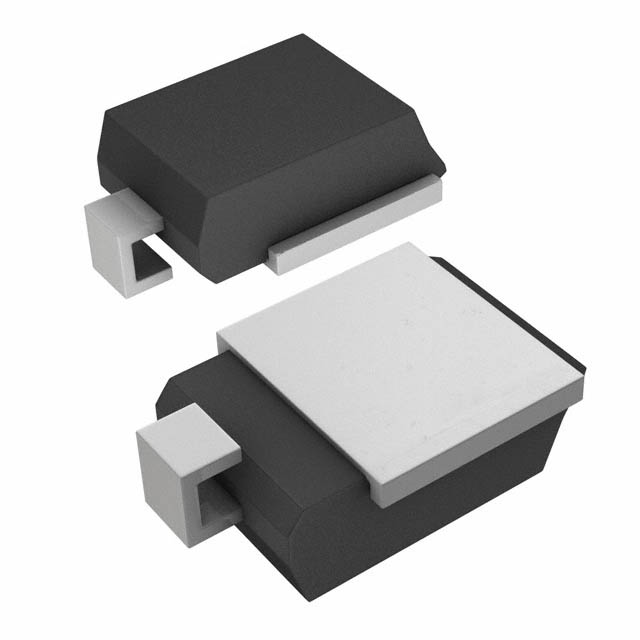

lmages are for reference only.SM6S22CA-Q1
SURFACE MOUNT TRANSIENT VOLTAGE
DatasheetDO-218AB
17,966 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
35.5V Clamp 130A Ipp Tvs Diode Surface Mount DO-218AB
SM6S22CA-Q1
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | ANBON SEMICONDUCTOR (INT'L) LIMITED |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 22V |
| Voltage - Breakdown (Min) | 24.4V |
| Voltage - Clamping (Max) @ Ipp | 35.5V |
| Current - Peak Pulse (10/1000µs) | 130A |
| Power - Peak Pulse | 4600W (4.6kW) |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-218AB |
| Supplier Device Package | DO-218AB |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SM6S20-E3/2D | SM6S20A | SM6S20A-AU_R2_000A1 | SM6S20A-E3/2D |
| Manufacturer | Vishay General Semiconductor - Diodes Division | SMC Diode Solutions | Panjit International Inc. | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 20VWM 35.8VC DO218AB | TVS DIODE 20VWM 32.4VC DO218AB | 4.6KW SURFACE MOUNT TRANSIENT VO | TVS DIODE 20VWM 32.4VC DO218AB |
| Series | Vishay General Semiconductor - Diodes Division | SMC Diode Solutions | Panjit International Inc. | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
