SM6T15CAHE3/5B

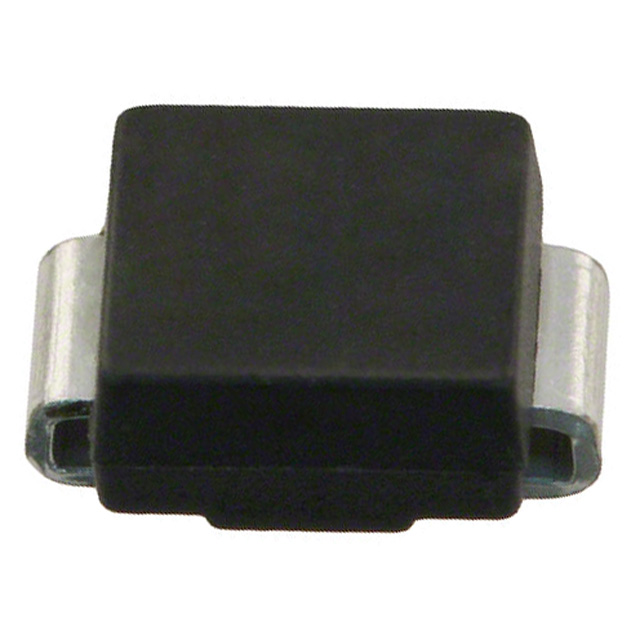

lmages are for reference only.SM6T15CAHE3/5B
TVS DIODE 12.8VWM 21.2VC DO214AA
DatasheetDO-214AA, SMB
53,581 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
21.2V Clamp 28A Ipp Tvs Diode Surface Mount DO-214AA (SMBJ)
SM6T15CAHE3/5B
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | SM6T, TransZorb® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 12.8V |
| Voltage - Breakdown (Min) | 14.3V |
| Voltage - Clamping (Max) @ Ipp | 21.2V |
| Current - Peak Pulse (10/1000µs) | 28A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMBJ) |
| Base Product Number | SM6T15 |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
|
 |
 |
| Part Number | SM6T15CAHE3/52 | SM6T15CAHE3_A/H | SM6T15CAHE3_A/I | SM6T15CAHE3_B/H |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 12.8VWM 21.2VC DO214AA | TVS DIODE 12.8VWM 21.2VC DO214AA | TVS DIODE 12.8VWM 21.2VC DO214AA | 600W,15V 5%,BIDIR,SMB TVS |
| Series | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
