Product CatalogPart Number
SM8S10A-TP
Manufacturer
Micro Commercial CoDescription
Interface
Datasheet
DatasheetPackage
DO-218AB
In Stock
95,618 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SM8S10A-TP
SM8S10A-TP
lmages are for reference only.Payment Methods
Delivery Services
17V Clamp 388A Ipp Tvs Diode Surface Mount DO-218AB
Quick Inquiry
SM8S10A-TP
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Micro Commercial Co |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 10V |
| Voltage - Breakdown (Min) | 11.1V |
| Voltage - Clamping (Max) @ Ipp | 17V |
| Current - Peak Pulse (10/1000µs) | 388A |
| Power - Peak Pulse | 6600W (6.6kW) |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-218AB |
| Supplier Device Package | DO-218AB |
| Base Product Number | SM8S10 |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
Parts with Similar Specifications
| Product Attribute | |
 |
|
 |
| Part Number | SM8S10A | SM8S10A-E3/2D | SM8S10AH | SM8S10AHE3-TP |
| Manufacturer | MDD | Vishay General Semiconductor - Diodes Division | Eaton - Electronics Division | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE UNI 10VWM DO218AB | TVS DIODE 10VWM 17VC DO218AB | TVS DIODE 10VWM UNI | TVS DIODES |
| Series | MDD | Vishay General Semiconductor - Diodes Division | Eaton - Electronics Division | Micro Commercial Co |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products
SM8S10A
MDD
SM8S10A-E3/2D
Vishay General Semiconductor - Diodes Division
SM8S10AH
Eaton - Electronics Division

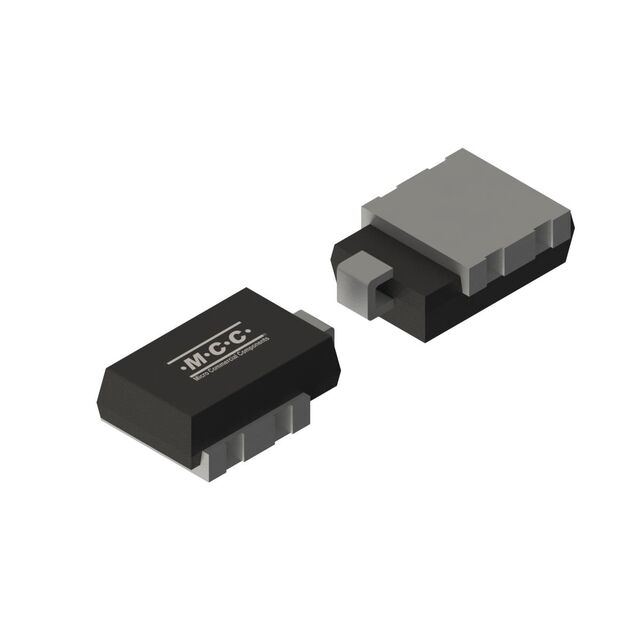

SM8S10AHE3-TP
Micro Commercial Co
SM8S10AHE3/2D
Vishay General Semiconductor - Diodes Division
SM8S10AHE3/2E
Vishay General Semiconductor - Diodes Division
SM8S10AHE3_A/I
Vishay General Semiconductor - Diodes Division

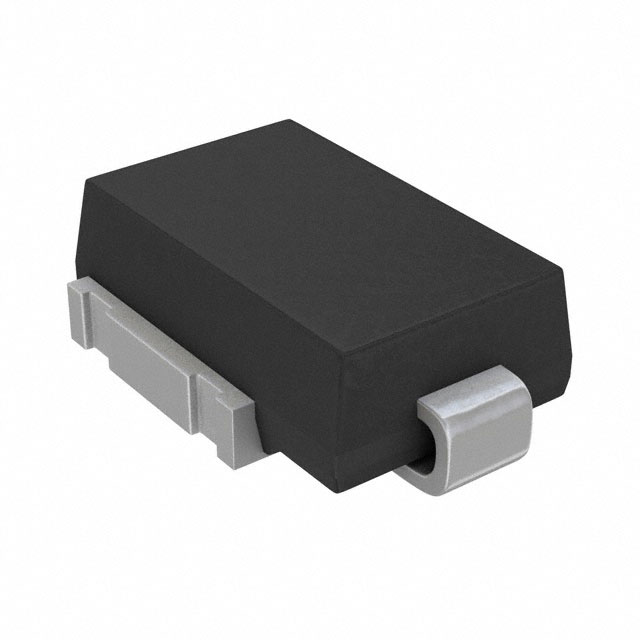

SM8S10ATHE3/I
Vishay General Semiconductor - Diodes Division
SM8S10CA
MDD
SM8S10CAHM3/I
Vishay General Semiconductor - Diodes Division
SM8S10HE3/2D
Vishay General Semiconductor - Diodes Division
SM8S10HE3/2E
Vishay General Semiconductor - Diodes Division
SM8S11-E3/2D
Vishay General Semiconductor - Diodes Division

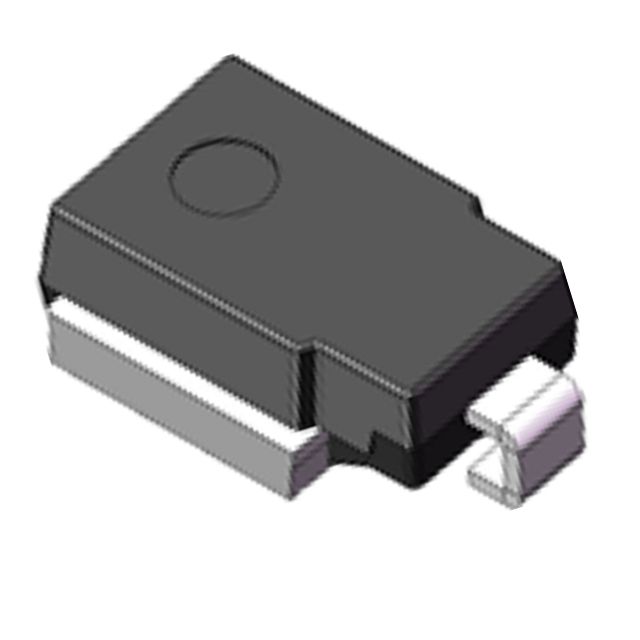

SM8S11A
MDD

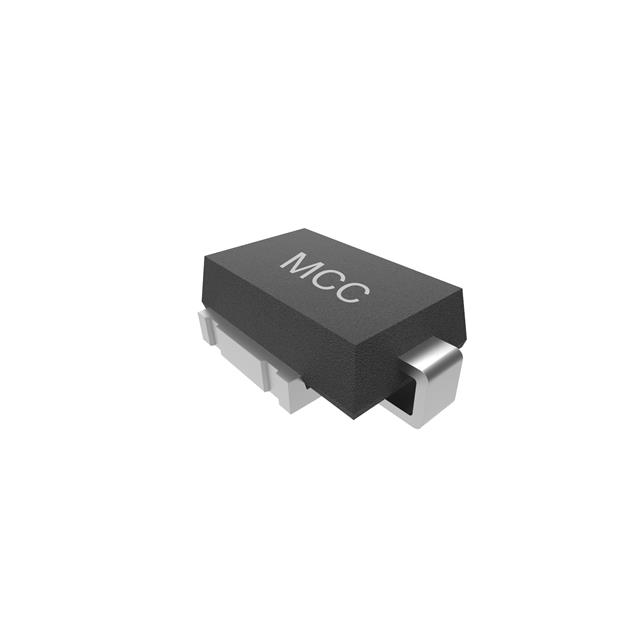

SM8S11A-TP
Micro Commercial Co

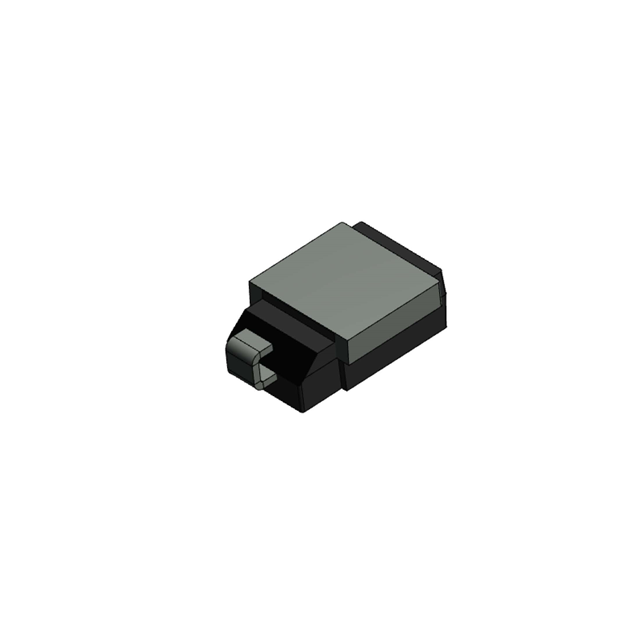

SM8S11AH
