Product CatalogPart Number
SM99S01VBNN06G7
Manufacturer
METZ CONNECT USA Inc.Description
TERM BLOCK 1POS SIDE ENTRY SMD
Datasheet
DatasheetPackage
-
In Stock
75,124 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SM99S01VBNN06G7
SM99S01VBNN06G7
lmages are for reference only.Payment Methods
Delivery Services
1 Position Wire to Board Terminal Block Horizontal with Board Surface Mount
Quick Inquiry
SM99S01VBNN06G7
Specifications
| Category | Connectors, Interconnects - Terminal Blocks - Wire to Board |
| Manufacturer | METZ CONNECT USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Number of Levels | 1 |
| Positions Per Level | 1 |
| Pitch | - |
| Mating Orientation | Horizontal with Board |
| Current | 9 A |
| Voltage | 300 V |
| Wire Gauge | 16-24 AWG |
| Mounting Type | Surface Mount |
| Wire Termination | Screwless - Spring Cage, Tension Clamp |
| Features | Push Button Actuated |
| Color | Orange |
| Operating Temperature | -40°C ~ 105°C |
| Housing Material | Polyamide (PA6T), Nylon 6T |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Clamp Material - Plating | Steel |
| Screw Material - Plating | - |
| Torque - Screw | - |
| Screw Thread | - |
| Base Product Number | SM99S01VB |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | SM99S01VBNN00G7 | SM99S01VBNN01G7 | SM99S01VBNN02G7 | SM99S01VBNN03G7 |
| Manufacturer | METZ CONNECT USA Inc. | METZ CONNECT USA Inc. | METZ CONNECT USA Inc. | METZ CONNECT USA Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | TERM BLOCK 1POS SIDE ENTRY SMD | TERM BLOCK 1POS SIDE ENTRY SMD | TERM BLOCK 1POS SIDE ENTRY SMD | TERM BLOCK 1POS SIDE ENTRY SMD |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products

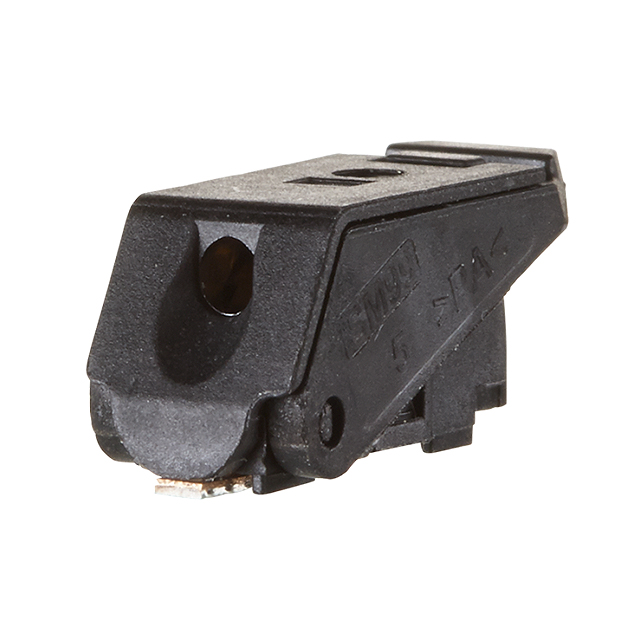

SM99S01VBNN00G7
METZ CONNECT USA Inc.

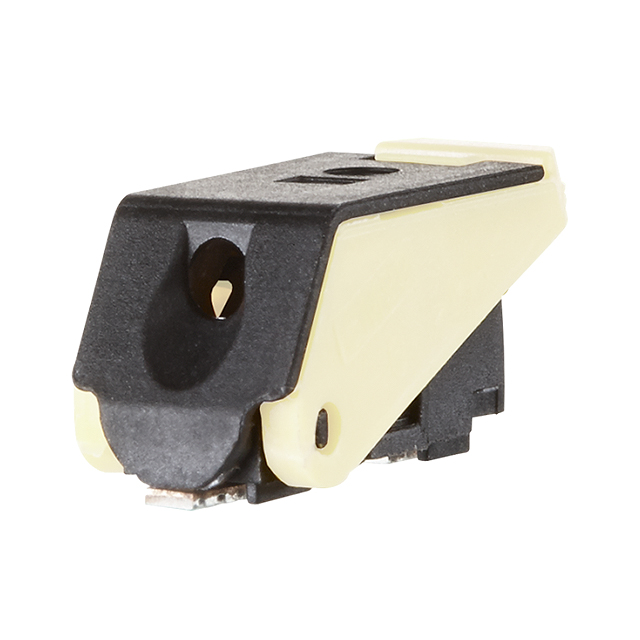

SM99S01VBNN01G7
METZ CONNECT USA Inc.

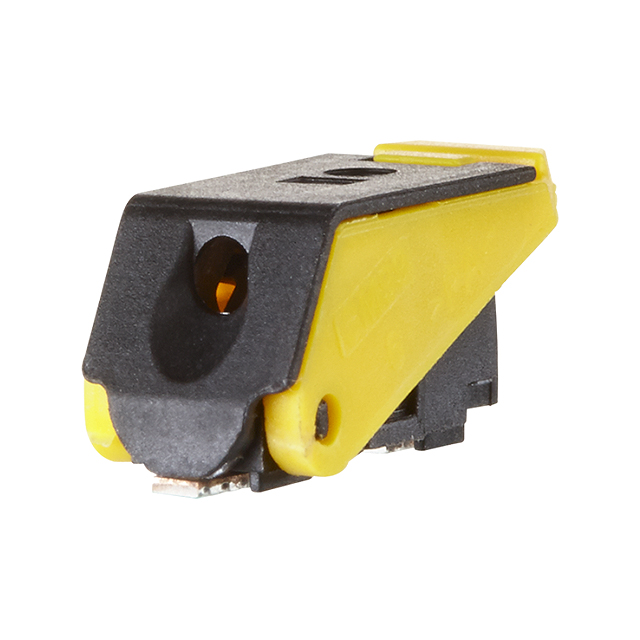

SM99S01VBNN02G7
METZ CONNECT USA Inc.

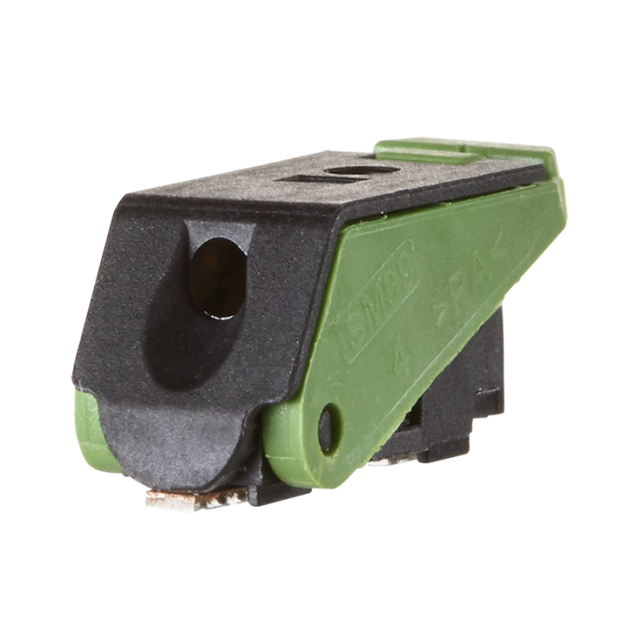

SM99S01VBNN03G7
METZ CONNECT USA Inc.
SM99S01VBNN04G7
METZ CONNECT USA Inc.

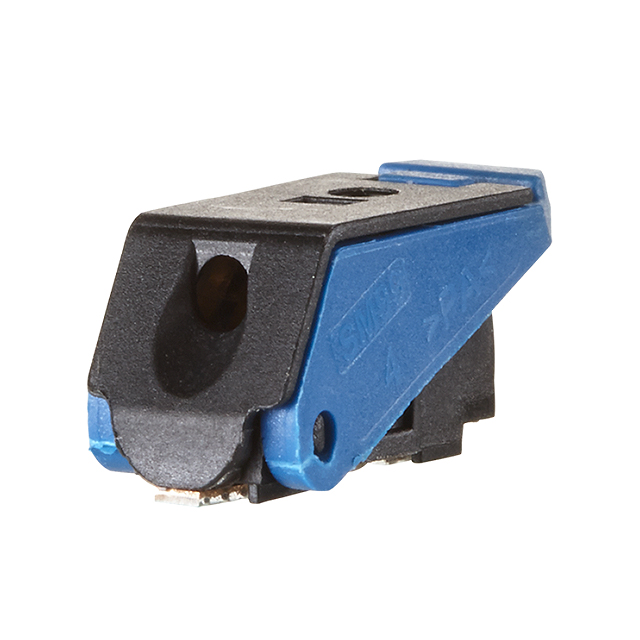

SM99S01VBNN05G7
METZ CONNECT USA Inc.

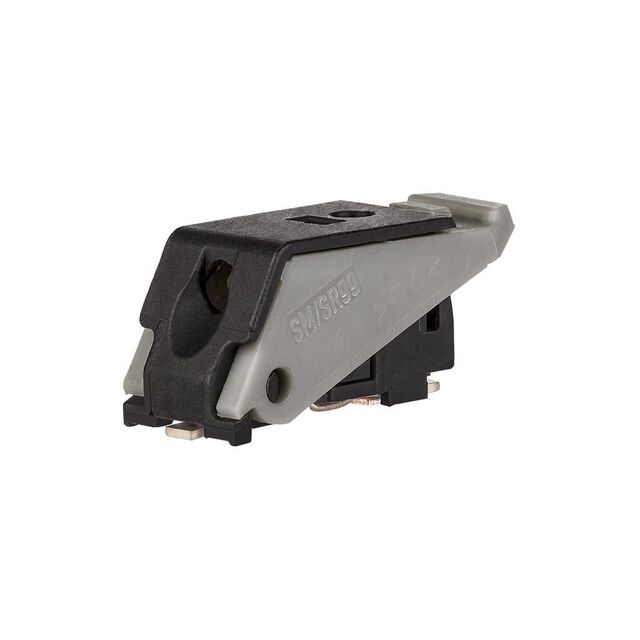

SM99S01VBNN07G7
METZ CONNECT USA Inc.

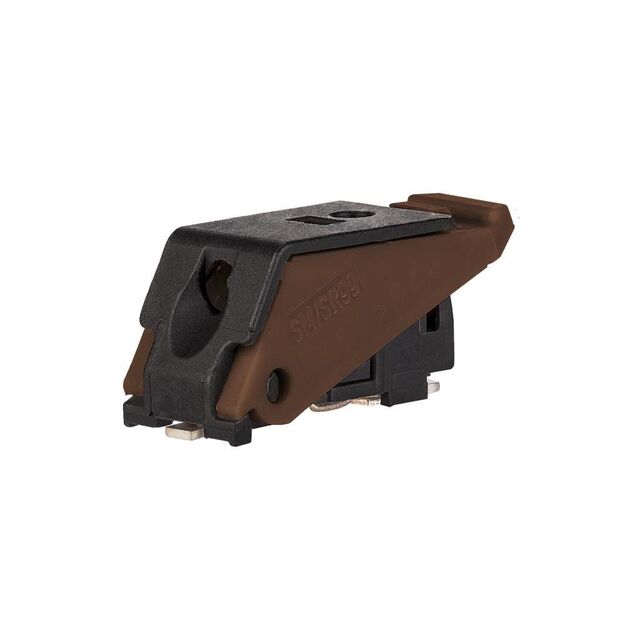

SM99S01VBNN08G7
