SMA-A0204BTNX15K
lmages are for reference only.SMA-A0204BTNX15K
RES 15K OHM 0.1% 2/5W MELF 0204
DatasheetMELF, 0204
20,192 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
15 kOhms ±0.1% 0.4W, 2/5W Chip Resistor MELF, 0204 Automotive AEC-Q200 Metal Film
SMA-A0204BTNX15K
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | TE Connectivity Passive Product |
| Series | SMA-A |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 15 kOhms |
| Tolerance | ±0.1% |
| Power (Watts) | 0.4W, 2/5W |
| Composition | Metal Film |
| Features | Automotive AEC-Q200 |
| Temperature Coefficient | ±15ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | MELF, 0204 |
| Supplier Device Package | 204 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.055" Dia x 0.138" L (1.40mm x 3.50mm) |
| Height - Seated (Max) | - |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | SMA-A0204 |
| Product Attribute |  |
 |
|
 |

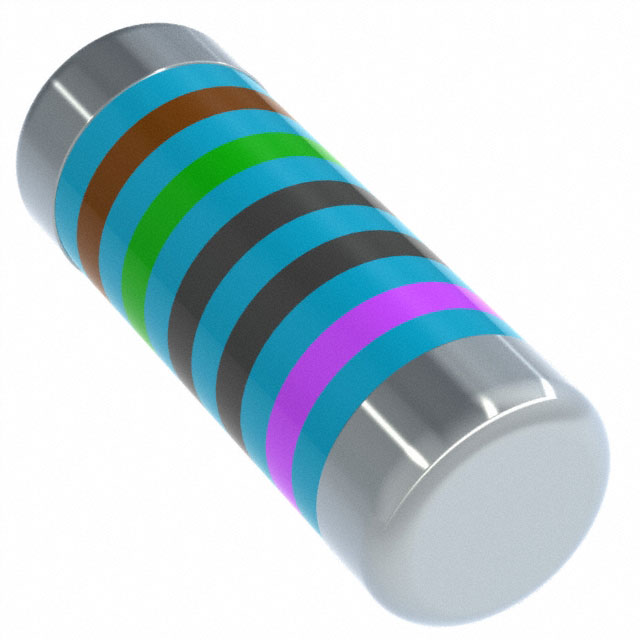

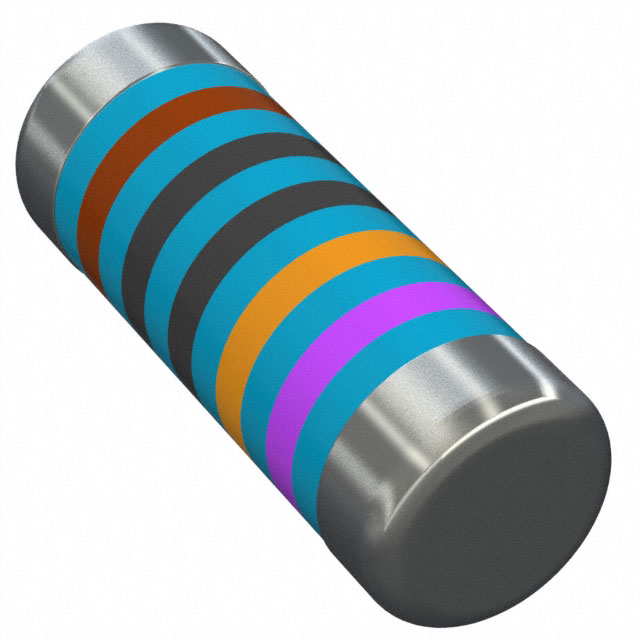

| Part Number | SMA-A0204BTNX150R | SMA-A0204BTNX100K | SMA-A0204BTNX100K | SMA-A0204BTNX100R |
| Manufacturer | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 150 OHM 0.1% 2/5W MELF 0204 | RES 100K OHM 0.1% 2/5W MELF 0204 | RES 100K OHM 0.1% 2/5W MELF 0204 | RES 100 OHM 0.1% 2/5W MELF 0204 |
| Series | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
