SMA201LY G/W
lmages are for reference only.SMA201LY G/W
0.2" SGL SMD DISPLAY - YELLOW
Datasheet10-SMD, No Lead
17,414 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Yellow 7-Segment 1 Character Common Anode 2V 20mA 0.315" H x 0.283" W x 0.128" D (8.00mm x 7.20mm x 3.25mm) 10-SMD, No Lead
SMA201LY G/W
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | American Opto Plus LED |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 1 |
| Size / Dimension | 0.315" H x 0.283" W x 0.128" D (8.00mm x 7.20mm x 3.25mm) |
| Digit/Alpha Size | 0.20" (5.08mm) |
| Display Type | 7-Segment |
| Common Pin | Common Anode |
| Color | Yellow |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Millicandela Rating | 12mcd |
| Wavelength - Peak | 593nm |
| Power Dissipation (Max) | 70mW |
| Package / Case | 10-SMD, No Lead |
| Base Product Number | SMA201 |
| Display Format | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SMA201LA G/W | SMA201LB G/W | SMA201LE G/W | SMA201LE-UT GW |
| Manufacturer | American Opto Plus LED | American Opto Plus LED | American Opto Plus LED | American Opto Plus LED |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

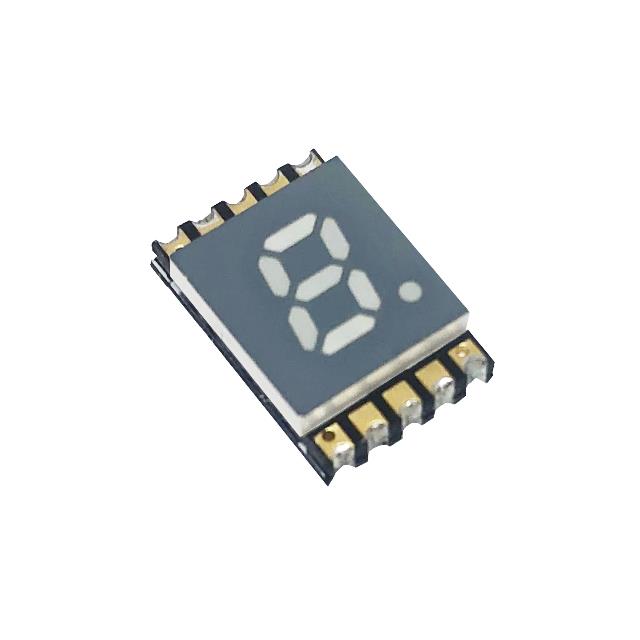

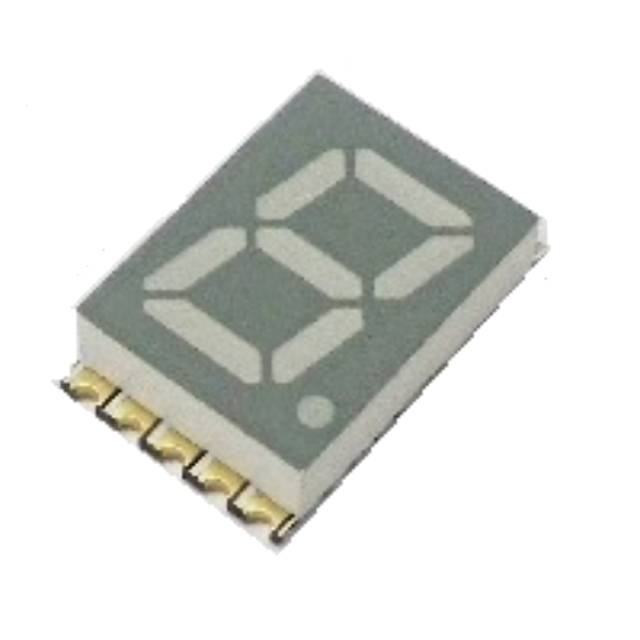

| Description | 0.2" SGL SMD DISPLAY - AMBER | 0.2" SGL SMD DISPLAY - BLUE | 0.2" SGL SMD DISPLAY - RED | ULTRA THIN 7SEG 0.2" RED 10SMD |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
