SMA301LB G/W
lmages are for reference only.SMA301LB G/W
0.3" SGL SMD DISPLAY - BLUE
Datasheet10-SMD, No Lead
19,675 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Blue 7-Segment 1 Character Common Anode 3.2V 20mA 0.394" H x 0.287" W x 0.169" D (10.00mm x 7.30mm x 4.30mm) 10-SMD, No Lead
SMA301LB G/W
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | American Opto Plus LED |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 1 |
| Size / Dimension | 0.394" H x 0.287" W x 0.169" D (10.00mm x 7.30mm x 4.30mm) |
| Digit/Alpha Size | 0.30" (7.62mm) |
| Display Type | 7-Segment |
| Common Pin | Common Anode |
| Color | Blue |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Current - Test | 20mA |
| Millicandela Rating | 10mcd |
| Wavelength - Peak | 470nm |
| Power Dissipation (Max) | 120mW |
| Package / Case | 10-SMD, No Lead |
| Base Product Number | SMA301 |
| Display Format | - |
| Product Attribute |  |
 |
 |
 |

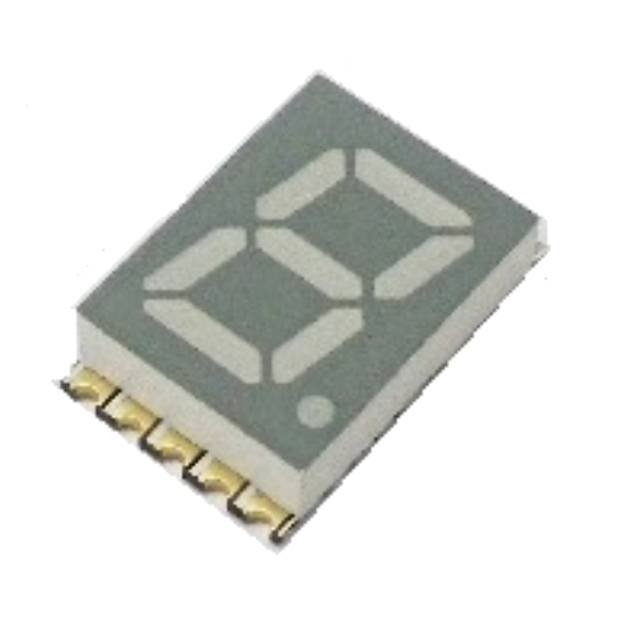

| Part Number | SMA301LA G/W | SMA301LE G/W | SMA301LE-UT GW | SMA301LR G/W |
| Manufacturer | American Opto Plus LED | American Opto Plus LED | American Opto Plus LED | American Opto Plus LED |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 0.3" SGL SMD DISPLAY - AMBER | 0.3" SGL SMD DISPLAY - RED | ULTRA THIN 7SEG 0.3" RED 10SMD | 0.3" SGL SMD DISPLAY - S-RED |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Tape & Reel (TR) |
