Product CatalogPart Number
SMA394LE G/W
Manufacturer
American Opto Plus LEDDescription
DISP 28SEG 0.39 QUAD RED 12DIP
Datasheet
DatasheetPackage
12-DIP
In Stock
16,905 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SMA394LE G/W
SMA394LE G/W
lmages are for reference only.Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Red 7-Segment 4 Character Common Anode 2V 20mA 0.591" H x 1.543" W x 0.150" D (15.00mm x 39.20mm x 3.80mm) 12-DIP
Quick Inquiry
SMA394LE G/W
Specifications
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | American Opto Plus LED |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 4 |
| Size / Dimension | 0.591" H x 1.543" W x 0.150" D (15.00mm x 39.20mm x 3.80mm) |
| Digit/Alpha Size | 0.39" (10.00mm) |
| Display Type | 7-Segment |
| Common Pin | Common Anode |
| Color | Red |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Millicandela Rating | 30mcd |
| Wavelength - Peak | 632nm |
| Power Dissipation (Max) | 70mW |
| Package / Case | 12-DIP |
| Base Product Number | SMA394 |
| Display Format | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | SMA394LB G/W | SMA394LY G/W | SMA394YG G/W | SMC394LB G/W |
| Manufacturer | American Opto Plus LED | American Opto Plus LED | American Opto Plus LED | American Opto Plus LED |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

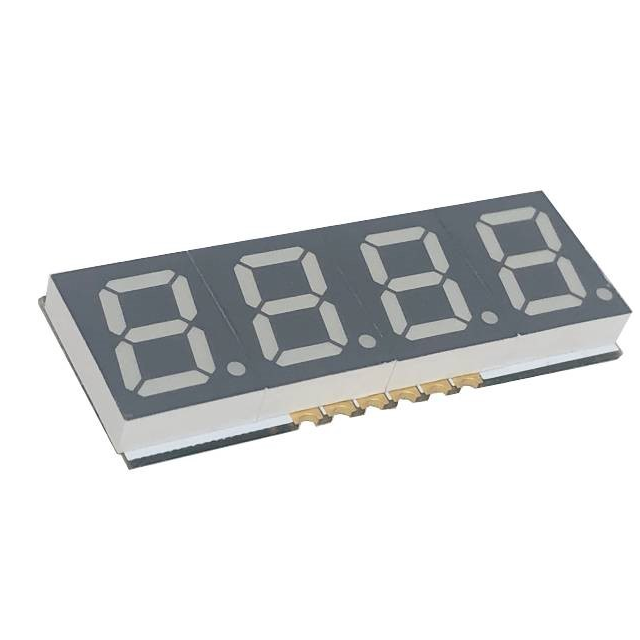

| Description | DISP 28SEG 0.39 QUAD BLUE 12DIP | DISP 28SEG 0.39 QUAD YELLOW 12DI | DIS 28SEG 0.39Q UAD Y-GREEN 12DI | DISP 28SEG 0.39 QUAD BLUE 12DIP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
