SMA4F30AH

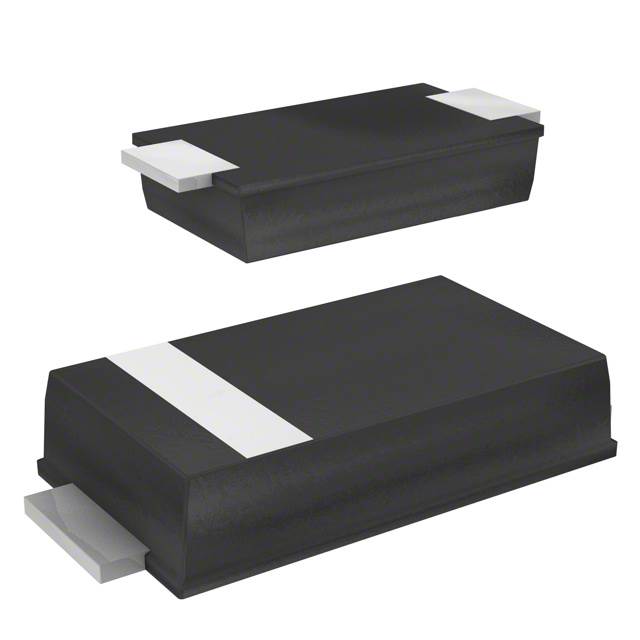

lmages are for reference only.SMA4F30AH
400W, 35.3V, 5%, UNIDIRECTIONAL,
DatasheetDO-221AC, SMA Flat Leads
25,586 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
48.7V Clamp 8.2A Ipp Tvs Diode Surface Mount Thin SMA
SMA4F30AH
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | SMA4F |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 30V |
| Voltage - Breakdown (Min) | 33.5V |
| Voltage - Clamping (Max) @ Ipp | 48.7V |
| Current - Peak Pulse (10/1000µs) | 8.2A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-221AC, SMA Flat Leads |
| Supplier Device Package | Thin SMA |
| Base Product Number | SMA4F30 |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |
| Part Number | SMA4F30A | SMA4F30AY | SMA4F31A | SMA4F31AY |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | TVS DIODE 30VWM 64.3VC SMAFLAT | TVS DIODE 30VWM 48.4VC SMAFLAT | TVS DIODE 31VWM 65VC SMAFLAT | TVS DIODE 31VWM 50.2VC SMAFLAT |
| Series | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
